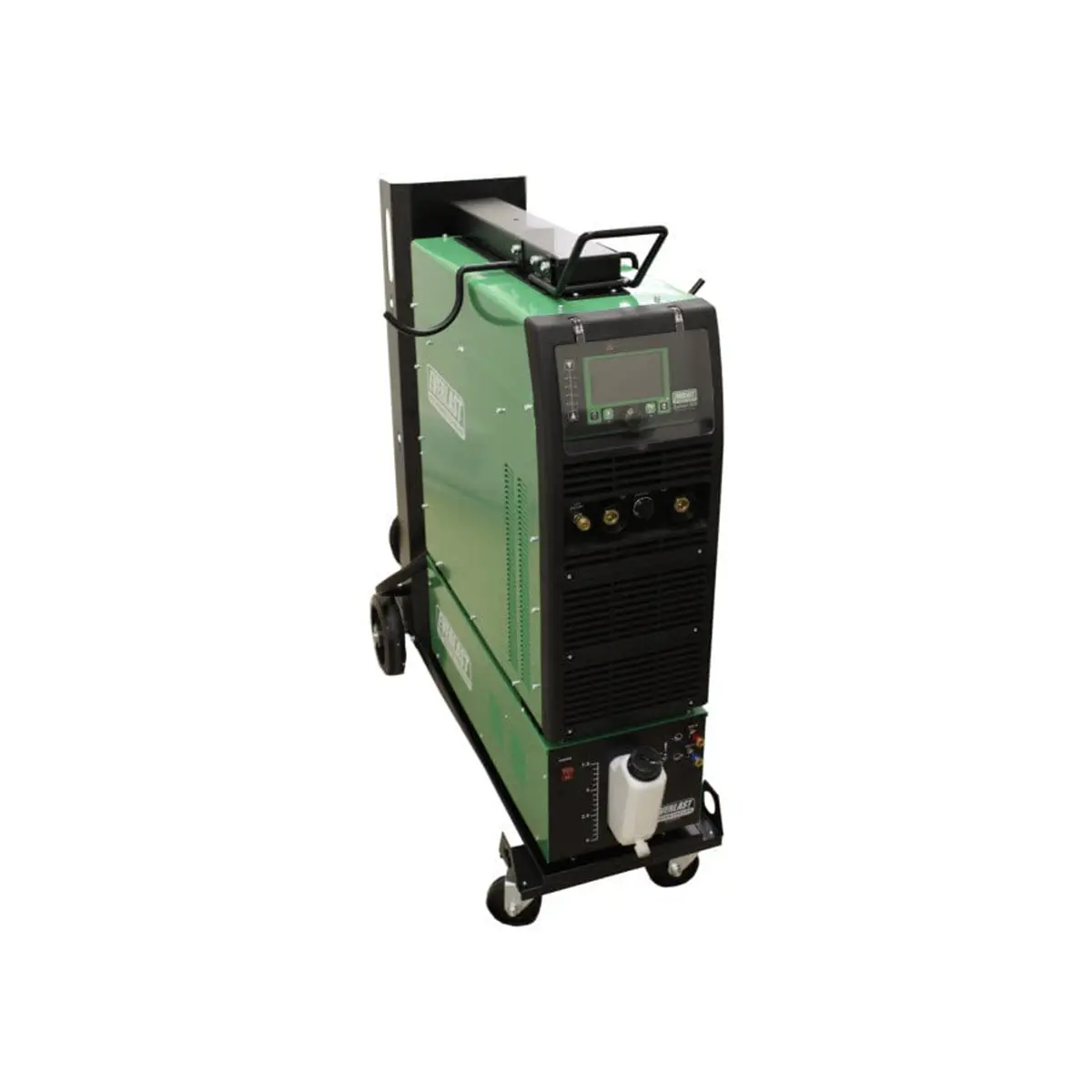

Everlast Typhoon 500 AC DC TIG Welder
$3,899.00
The Everlast Typhoon 500 AC DC TIG Welder is a high-amperage industrial welding system engineered for extreme aluminum and steel applications, offering advanced waveform control and multi-phase power flexibility.
Description
Overview Everlast Typhoon 500 AC DC TIG Welder
The Everlast Typhoon 500 AC DC TIG Welder is a flagship industrial welding solution built for fabrication shops, production facilities, and heavy manufacturing environments that require extreme output and precision control. Delivering up to 400 amps on single-phase 240V power and up to 500 amps on three-phase 480V input, this machine is designed to handle thick aluminum and steel with confidence.
Featuring advanced AC waveform technology, a high-resolution LCD interface, and intelligent PowerSet setup, the Typhoon 500 provides exceptional arc stability, deep penetration, and refined bead appearance across demanding applications.
Features and Performance
- Up to 500 Amp AC/DC TIG Output supports welding steel and aluminum up to 3/4 inch thick
- Multi-Phase Power Capability operates on 240V single-phase or 480V three-phase input without compromise
- Five Advanced AC Waveforms including Advanced Square, Soft Square, Triangle, Sine, and Trapezoidal for precise aluminum puddle control
- Industry-First Trapezoidal Waveform offers a unique arc feel and enhanced control when welding aluminum
- Split AC Waveform Control allows independent EN and EP amplitude adjustment to balance penetration and cleaning action
- Advanced AC Pulse Mode blends AC and DC negative to achieve penetration comparable to higher-amperage machines
- DC and AC Pulse Control with DC pulse up to 999.9 Hz and AC pulse up to 400 Hz for precise heat management
- True Low-Amperage Starts down to 5A DC and 10A AC for controlled arc initiation

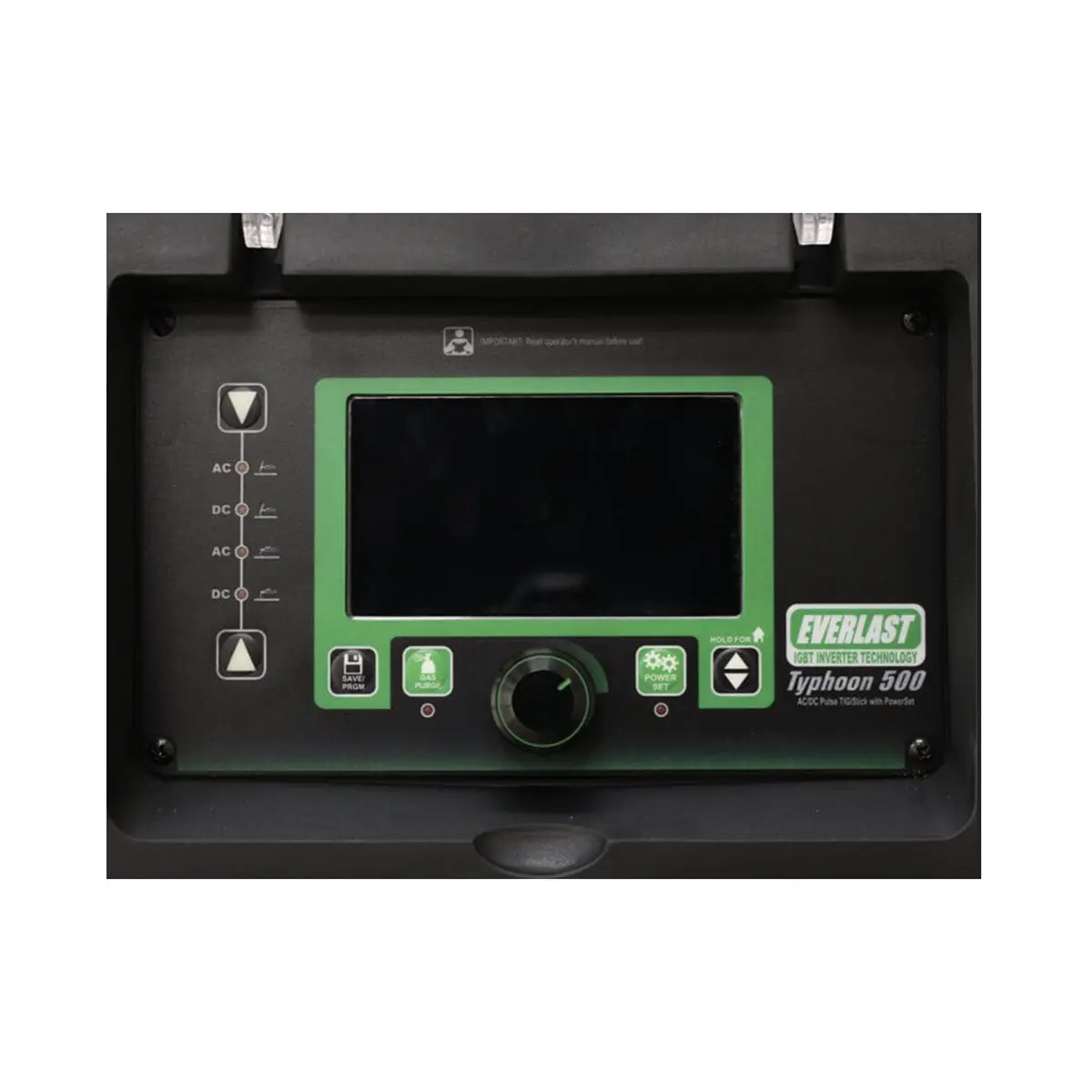

- HD Color LCD Screen displays all parameters clearly on a single screen with intuitive navigation
- Advanced PowerSet Menu simplifies setup and reduces adjustment time
- 30-Program Memory with Lock Function ensures consistency and prevents tampering in multi-user environments
- High-Performance Stick Welding Output delivers smooth DC arc performance for E7018 and similar electrodes
Why You Should Buy it
- Designed for heavy-duty industrial TIG welding and production environments
- Exceptional aluminum penetration without sacrificing bead control
- Flexible power options support shop and factory installations
- Complete system includes cart, water cooler, and premium accessories
- Backed by an industry-leading five-year parts and labor warranty
Reviews (0)
Specifications
| Specification | Details |
|---|---|
| Welding Processes | AC/DC TIG (GTAW), Stick (SMAW) |
| Input Power | 240V Single-Phase / 480V Three-Phase |
| Maximum TIG Output | Up to 500 Amps |
| Single-Phase TIG Output | Up to 400 Amps |
| Steel TIG Capacity | 0.007 – 3/4 in |
| Aluminum TIG Capacity | 0.015 – 3/4 in |
| Stick Output | 315A (240V) / 400A (480V) |
| AC Waveforms | Advanced Square, Soft Square, Triangle, Sine, Trapezoidal |
| Pulse Frequency | DC up to 999.9 Hz / AC up to 400 Hz |
| Display | HD Color LCD (720p) |
| Memory Programs | 30 with Lock Function |
| Cooling System | Included Water Cooler |
| Warranty | 5-Year Parts and Labor Warranty |

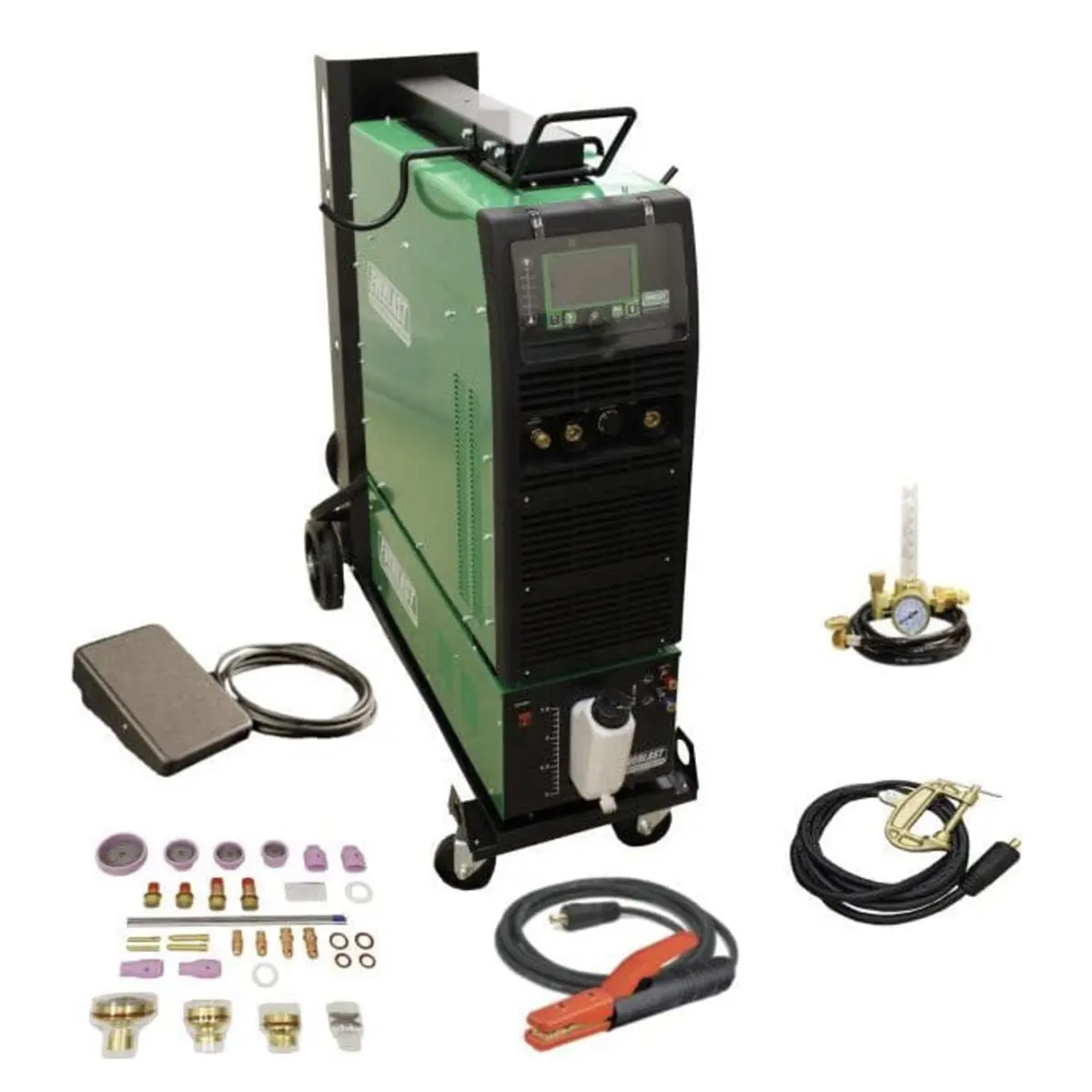

What’s Included
- Typhoon 500 Power Source
- PowerCart 300 with Accessory Holders
- PowerCool 400 Water Cooler
- NOVA Wired Foot Pedal (25 ft)
- NOVA 26 Series Air-Cooled TIG Torch (12.5 ft)
- CK 18 Series Water-Cooled TIG Torch (12.5 ft)
- 400A Stick Electrode Holder with 10 ft Cable
- 500A Bronze Work Clamp with 10 ft Cable
- TIG Consumable Starter Kit (tungsten not included)
- Argon Regulator with Hose
