Furuno TZT13X Multifunction Display

Overview Furuno TZT13X Multifunction Display

Furuno TZT13X Multifunction Display is a 13.3-inch Full HD all-glass NavNet TZtouchXL display designed for helms that need advanced navigation and sonar capability in a more compact footprint. It combines a 1920 x 1080 IPS screen, a high-performance hexacore processor, built-in 1 kW TruEcho CHIRP sonar, and built-in CHIRP Side-Scan for multi-role operation at the helm.

The system also supports TZ MAPS with BathyVision, NMEA 2000, 1 Gbps LAN, Wi-Fi, Bluetooth, and 10 Hz GPS together with Furuno cloud features. That makes it a practical option for operators who want the newer TZtouchXL platform and integrated sonar tools without moving up to the larger 16-inch class.

Key Features

• Powerful Hexacore Processor: The hexacore CPU is the heart of the system, ensuring that high-bandwidth data from NXT Doppler Radar or DFF3D Multibeam Sonar is processed with zero system lag.

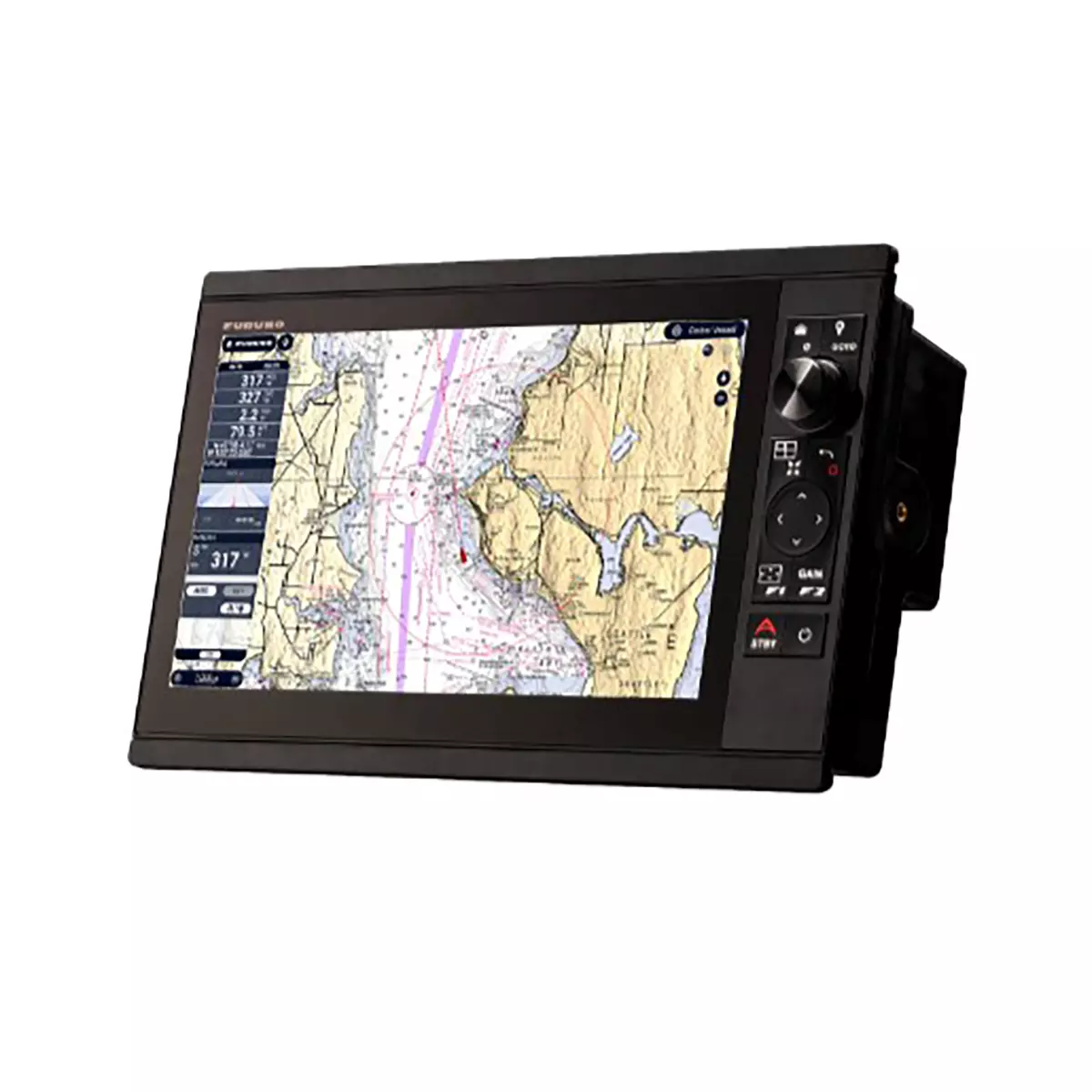

• 13-Inch Full HD IPS Display: The all-glass IPS touchscreen offers exceptional color accuracy and wide viewing angles, making it easy to read from any position in the cockpit, even with polarized sunglasses.
• Revolutionary TZ MAPS with BathyVision: TZ MAPS allows you to download wide chart areas, satellite photos, and bathymetric data directly from the MFD, featuring custom depth color shading for unmatched clarity.
• Built-in 1kW TruEcho CHIRP & Side-Scan: The integrated sonar supports 1 kW TruEcho CHIRP and CW operation, while built-in Side-Scan at 230 kHz or 455 kHz helps show bottom detail and structure to port and starboard.
• Risk Visualizer & AI Avoidance Route: Risk Visualizer provides a visual representation of potential collision risks, while AI Avoidance Route instantly determines a safe path around hazards based on real-time radar data.

Applications

Furuno TZT13X Multifunction Display is well suited for center consoles, cruising boats, and sportfishing helms that want premium charting and sonar functions on a 13.3-inch screen. It gives enough room for chart, radar, and fishfinder use while staying easier to fit into more compact dashboards than a larger bridge display.

It also works well in networked Furuno installations where fast chart response, built-in sonar, and mobile or cloud synchronization are useful day to day. The combination of CHIRP, Side-Scan, and advanced route tools makes it a versatile display for navigation and search tasks.

Specifications

What’s Included

• 1x Furuno TZT13X 13.3-inch NavNet TZtouchXL MFD
• 1x Power Cable Assembly and Connector Caps
• 1x Standard Installation Materials and Hardware
• 1x Protective Silicone Cover
• 1x Flush Mounting Template and Gasket
• 1x Comprehensive Installation and Operation Documentation
