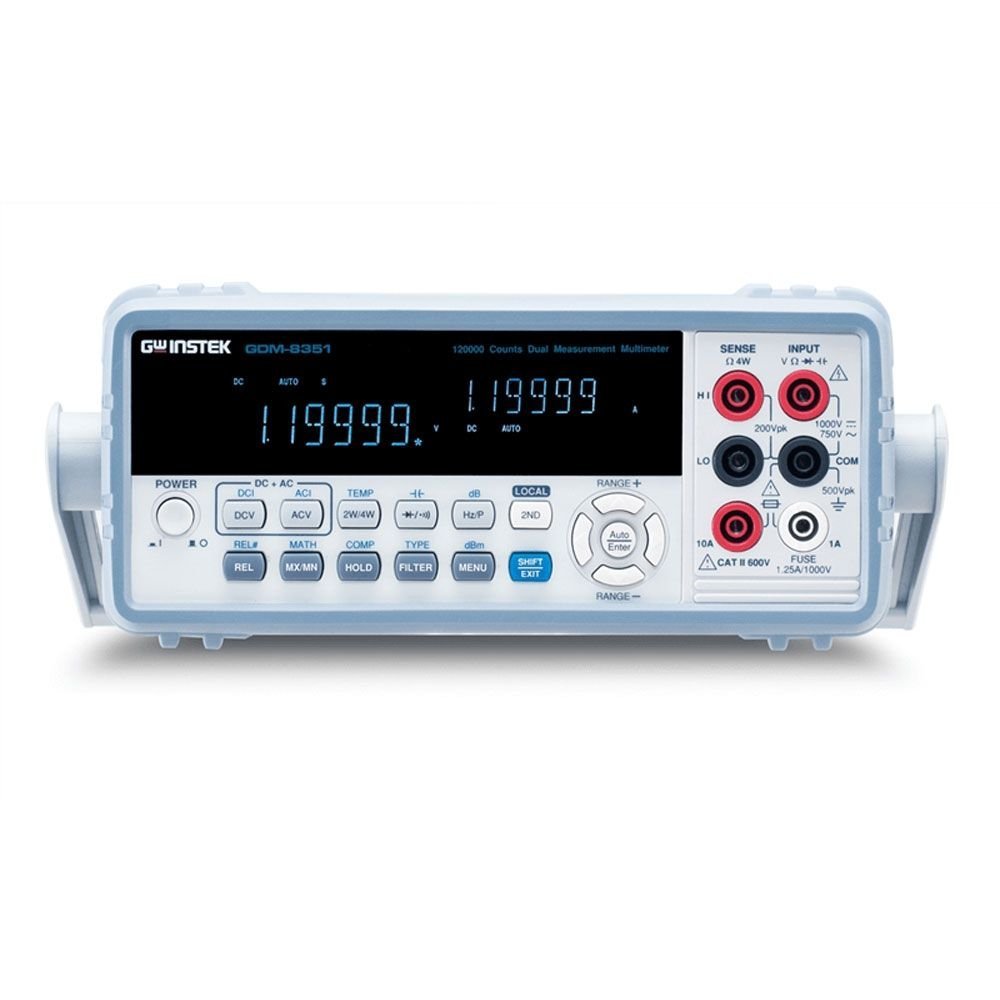

GW Instek GDM-8351 Multimeter

Overview GW Instek GDM-8351 Multimeter

GW Instek presents the brand new 5 1/2 Digit Dual Measurement Multimeter─ GDM-8351 to replace GDM-8251A of the same category GDM-8351 Features VFD dual-display, maximum 120,000 counts, 0.012% basic DC voltage accuracy and USB/RS232C connectors to provide users with measurement precision, lucid data observation, and the convenient connection with the personal computer In addition to the fundamental measurement items such as AC/DC voltage, AC/DC current, AC DC voltage/current, 2W/4W resistance, frequency, temperature measurement, continuity beeper and diode test, GDM-8351 also equips with the capacitance measurement function

Features and Performance

• 120,000 counts, VFD display
• Dual measurement/Dual display
• The basic precision of DC voltage: 0.012
• Selectable measurement speeds, the maximum: 320 Readings/s
• True RMS (AC，AC DC) measurements
• Auto/manual selection
• 12 different measurement functions: AC/DC voltage, AC/DC current, AC DC voltage/current, 2W/4W resistance, continuity beeper, diode test, capacitance, frequency, temperature
• Many auxiliary functions: Max./Min., REL/REL#, Compare, Hold, dB, dBm, Math (MX B, %, 1/X
• Digital I/O provides dual mode (standard Compare and User definition modes
• Standard RS-232C and USB device interface (support USBCDC and USBTMC modes
• Safety Instruction Sheet
• Power cord
• Test lead GTL-207
• CD(including complete user manual, driver and software

Why Choose This Product

This type is relevant for electrical measurement and troubleshooting. The source data also notes 120,000 counts, VFD display and Dual measurement/Dual display.
