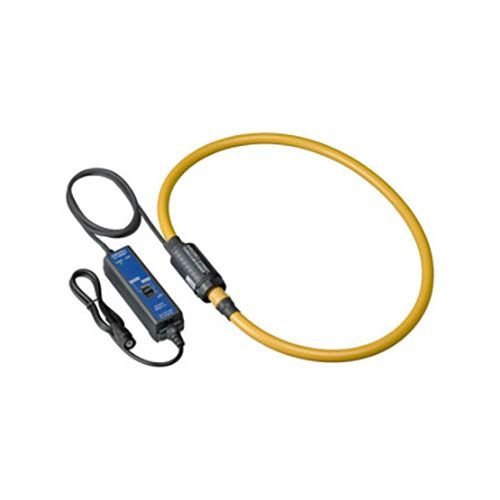

Hioki CT9667-01 Current Sensor
$259.00
Hioki CT9667-01 Current Sensor is a current sensor for current measurement and monitoring. Source details include CAT IV 600 V, CAT III 1000 V and Thinner cables are easy to use in confined spaces and with complicated wiring.
Description
Overview Hioki CT9667-01 Current Sensor
Hioki CT9667-01 Current Sensor is a current sensor for current measurement and monitoring. Source details include CAT IV 600 V, CAT III 1000 V and Thinner cables are easy to use in confined spaces and with complicated wiring.
Features and Performance
- CAT IV 600 V, CAT III 1000 V
- Thinner cables are easy to use in confined spaces and with complicated wiring
- Shaped so that it’s easy to route through complex wiring
- Easily supports large current measurements up to 5000 A
- Wide 10 Hz to 20 kHz band with excellent frequency characteristics
- Choose from three conductor diameter sizes
- Combine with Hioki power meters or Memory HiCorders
- Rated input current: 5000 A AC/ 500 A AC
- Max. allowable input: 10000 A continuous (45 to 66 Hz, requires derating at frequency
- Bandwidth: 10 Hz to 20 kHz (±3dB
- Amplitude and phase accuracy: ±2 % rdg. ±0.3 % f.s. (45 to 66 Hz, at center of flexible loop) Phase: ±1 deg (45 to 66 Hz
- 2 % rdg. ±0.3 % f.s. (45 to 66 Hz, at center of flexible loop
- Phase: ±1 deg (45 to 66 Hz
- Output voltage: 500 mV AC/f.s. (0.1 mV AC/A) at 5000 A range 500 mV AC/f.s. (1 mV AC/A) at 500 A range
- 500 mV AC/f.s. (0.1 mV AC/A) at 5000 A range
- 500 mV AC/f.s. (1 mV AC/A) at 500 A range
- Max. rated voltage to earth: 1000 V AC (CAT III), 600 V AC (CAT IV
- LR6 (AA) alkaline batteries ×2
- Instruction manual ×1
Why Choose This Product
This type is relevant for current measurement and monitoring. The source data also notes CAT IV 600 V, CAT III 1000 V and Thinner cables are easy to use in confined spaces and with complicated wiring.
Product Specifications
| Feature | Details |
|---|---|
| Rated input current | 5000 A AC/ 500 A AC |
| Max. allowable input | 10000 A continuous (45 to 66 Hz, requires derating at frequency |
| Bandwidth | 10 Hz to 20 kHz (±3dB |
| Amplitude and phase accuracy | ±2 % rdg. ±0.3 % f.s. (45 to 66 Hz, at center of flexible loop) Phase: ±1 deg (45 to 66 Hz |
| Phase | ±1 deg (45 to 66 Hz |
| Output voltage | 500 mV AC/f.s. (0.1 mV AC/A) at 5000 A range 500 mV AC/f.s. (1 mV AC/A) at 500 A range |
| Max. rated voltage to earth | 1000 V AC (CAT III), 600 V AC (CAT IV |
