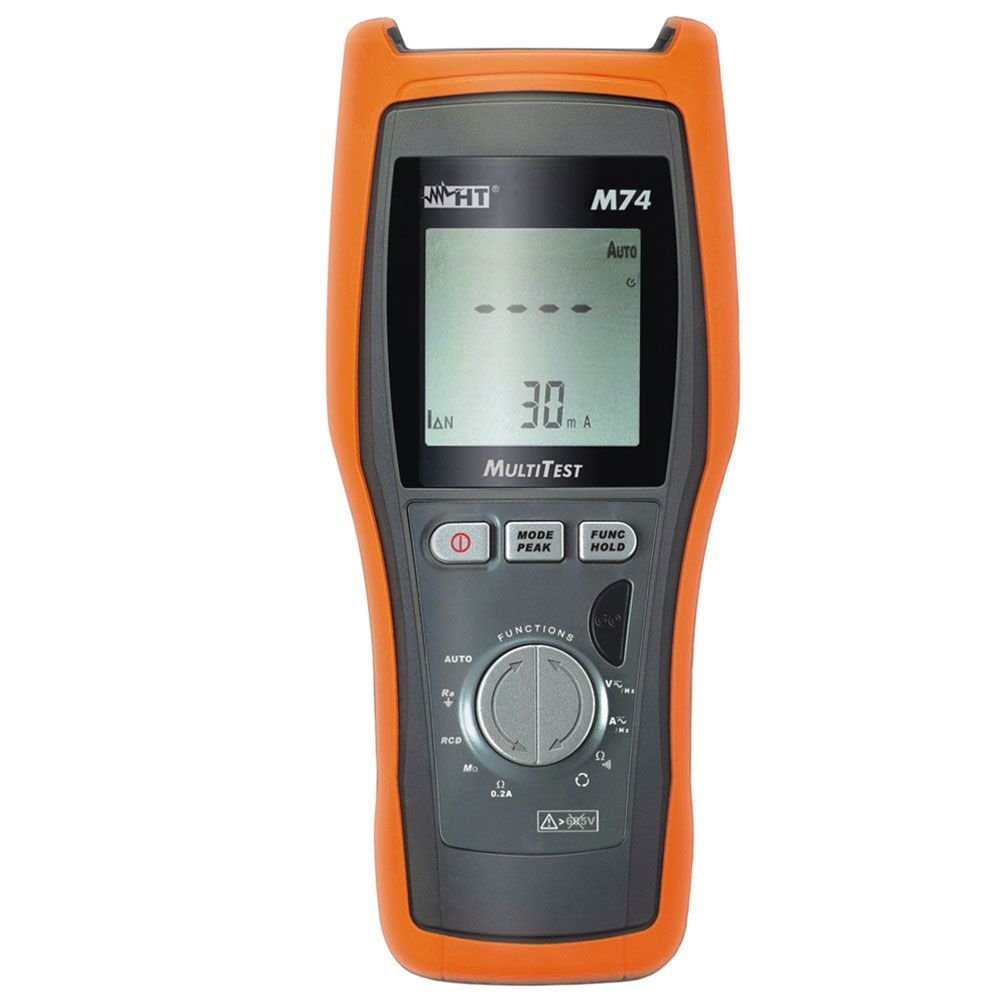

HT Instruments M74 Safety Tester
$386.00
HT Instruments M74 Safety Tester is a safety tester for electrical safety testing and verification. Source details include Continuity test of protective conductors with 200mA and Insulation Resistance measurement with 250, 500VDC.
Description
Overview HT Instruments M74 Safety Tester
HT Instruments M74 Safety Tester is a safety tester for electrical safety testing and verification. Source details include Continuity test of protective conductors with 200mA and Insulation Resistance measurement with 250, 500VDC.
Features and Performance
- Continuity test of protective conductors with 200mA
- Insulation Resistance measurement with 250, 500VDC
- Trip-out time of RCDs type A, AC Standard
- Selectable test current; 30mA, 30x5mA, 100mA, 300mA
- RCD Ramp test
- Global Earth Resistance without RCD tripping
- Global Earth Resistance with 0.1_ resolution
- Automatic test of global earth resistance RDC test insulation test
- DC Voltage
- AC TRMS Voltage
- Automatic detection of AC/DC signals
- AC TRMS Current with optional external clamp
- AC TRMS Leakage current with optional external clamp
- Resistance
- Continuity test with buzzer
- Frequency with test leads
- Frequency with optional external clamp
- Phase sequence indication with 1 or 2 terminals
- Phase coincidence indication with 1 or 2 terminals
- MIN/MAX/AVG functions
- PEAK function with response time 1ms
- HOLD function
- Auto Power OFF
- M74
- KIT0075 : Set 2 cables with leads 2 alligator clips
- C2075 : Cable 2 wires with Shuko plug
- BORSA75 : Carrying bag
- ISO9000 calibration certificate
- User manual on CD-ROM
- Quick reference guide
Why Choose This Product
This type is relevant for electrical safety testing and verification. The source data also notes Continuity test of protective conductors with 200mA and Insulation Resistance measurement with 250, 500VDC.
Product Specifications
| Feature | Details |
|---|---|
| KIT0075 | Set 2 cables with leads 2 alligator clips |
| C2075 | Cable 2 wires with Shuko plug |
| BORSA75 | Carrying bag |
