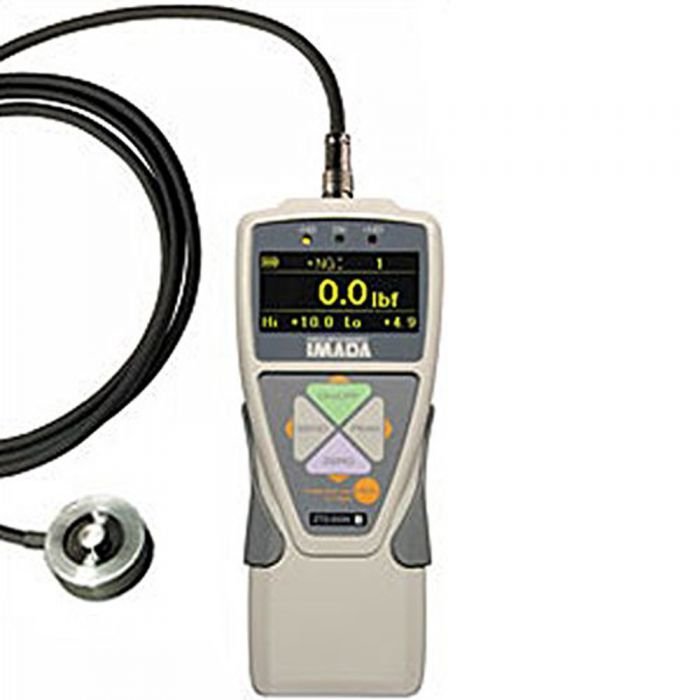

Imada ZTA-LM-44 Force Gauge
$900.00
Imada ZTA-LM-44 Force Gauge is a force gauge for tension, compression, and general force measurement. Source details include Accuracy: 0.2% F.S., 1 LSD and Selectable Units: lbf(ozf), kgf(gf) or Newtons.
Description
Overview Imada ZTA-LM-44 Force Gauge
Imada ZTA-LM-44 Force Gauge is a force gauge for tension, compression, and general force measurement. The available product data includes Accuracy: 0.2% F.S., 1 LSD and Selectable Units: lbf(ozf), kgf(gf) or Newtons.
Features and Performance
- Accuracy: 0.2% F.S., 1 LSD
- Selectable Units: lbf(ozf), kgf(gf) or Newtons
- Overload Capacity: 200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
- Power: Rechargeable Ni-MH battery pack or AC adapter
- Battery Indicator: Indicates three charge states high, med, and low
- Memory: Non-volative, recall up to 1,000 data
- Setpoints: Programmable high/low setpoints w/ color-coded LEDs & output signal
- Outputs: Outputs USB (virtual COM port), RS-232C, Digimatic and 2 VDC analog output
- Operating Temperature: 32 to 100 F (0 to 40 C)
- Warranty: 2 Years
Why Choose This Product
The measurement and output functions make this model suitable for force testing, inspection, and data capture workflows. The source data also notes Accuracy: 0.2% F.S., 1 LSD and Selectable Units: lbf(ozf), kgf(gf) or Newtons.
Product Specifications
| Feature | Details |
|---|---|
| Accuracy | 0.2% F.S., 1 LSD |
| Overload capacity | 200% of F.S. (Overload indicator flashes beyond 110% of F.S.) |
| Power | Rechargeable Ni-MH battery pack or AC adapter |
| Battery | Indicator: Indicates three charge states high, med, and low |
| Overload capacity | 200% F.S. |
| Display | force and displacement data with FA test stand (ZTA Models only) |
