Mark-10 EKE-500-2 Force Gauge

Overview Mark-10 EKE-500-2 Force Gauge

Mark-10 EKE-500-2 Force Gauge is a force gauge for tension, compression, and general force measurement. Series E push / pull force gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies Series E presents the ergonomist and other professionals with a simple and economical testing solution

Features and Performance

• Measure real time and peak push and pull forces
• measuring range: 500 lbF (2,500 N)
• Accuracy: ±0.2% of full scale
• Sampling rate: 7,000 Hz
• USB data output
• High / low limit indicators, for pass / fail and minimum force testing
• Averaging mode calculates average force over a period of time
• 5,000-point data memory – data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESURTM Lite data collection software.
• Statistical calculations for saved data points

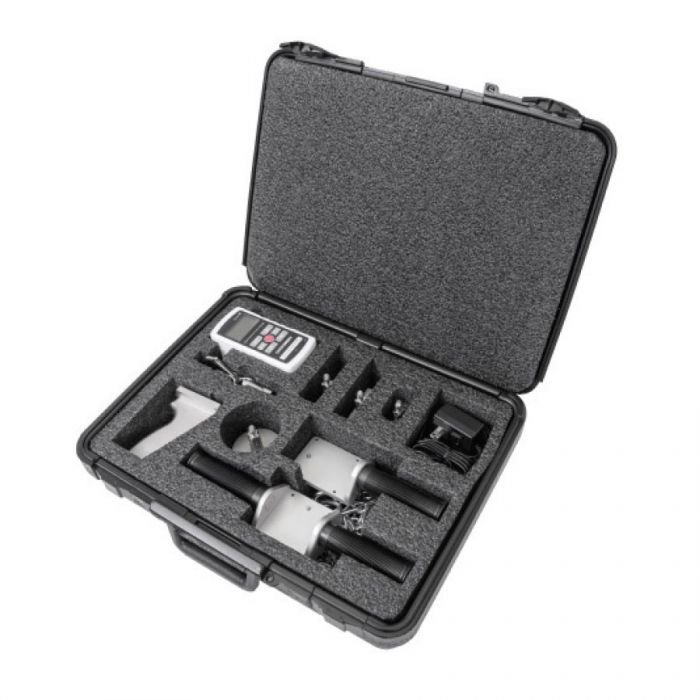

• Includes an AC adapter/charger, rechargeable battery, MESURTM Lite software, MESURTMgauge 90-day trial, USB cable, USB driver, carrying case, and NIST-traceable certificate of calibration with data

Why Choose This Product

The measurement and output functions make this model suitable for force testing, inspection, and data capture workflows. The source data also notes Measure real time and peak push and pull forces and measuring range: 500 lbF (2,500 N).
