Miller Electric Millermatic 255 MIG Welder
$2,514.00
The Miller Electric Millermatic 255 MIG Welder is an advanced all-in-one MIG and pulsed MIG welder designed to improve productivity, weld quality, and efficiency in fabrication and manufacturing environments.
Description
Overview Miller Electric Millermatic 255 MIG Welder
The Miller Electric Millermatic 255 MIG Welder is a high-performance MIG and pulsed MIG welding system engineered for professional fabrication, manufacturing, and aluminum welding applications. Combining advanced welding processes with a modern, easy-to-use interface, this machine helps operators produce higher-quality welds with less rework and reduced setup time.
With support for MIG, pulsed MIG, and flux-cored welding, this lightweight yet powerful unit is built for shops that demand flexibility, precision, and repeatable results across a wide range of materials and thicknesses.
Features and Performance
- Supports MIG, pulsed MIG, and flux-cored welding processes
- Pulsed MIG welding reduces heat input, minimizes distortion, and improves weld appearance

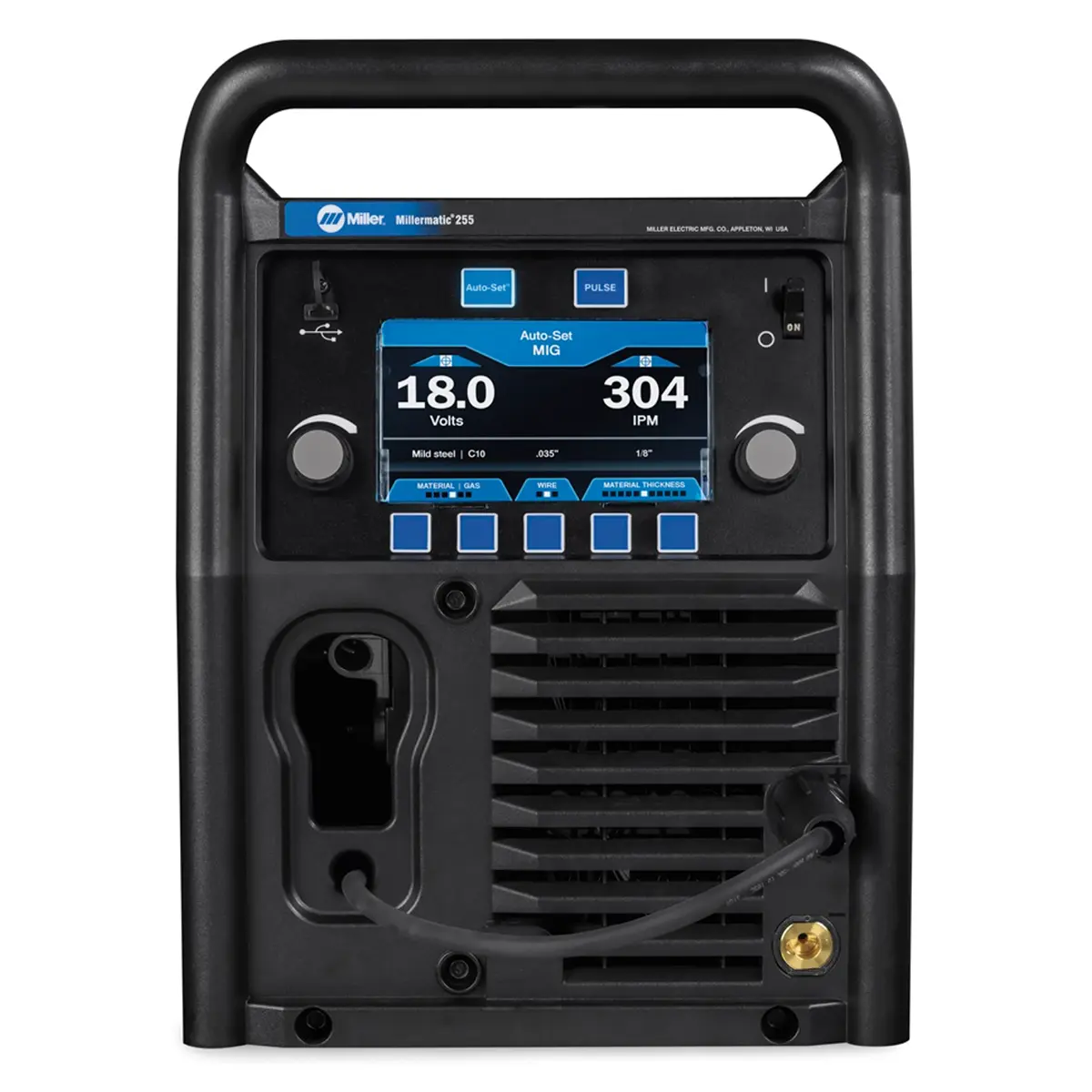

- 7-inch color LCD display simplifies setup and parameter selection
- Auto-Set technology provides predefined weld settings for consistent results
- Program mode allows saving and recalling frequently used weld parameters
- Locks and limits help maintain welding procedure specifications and reduce operator error
- MDX-250 MIG gun with AccuLock S consumables ensures consistent wire feeding and reduced downtime
- USB port enables software updates and weld program transfer
- Generator compatible for mobile fabrication and remote jobsite use
- Lightweight design makes it a portable industrial MIG welder without sacrificing output
This machine is ideal for users seeking a pulsed MIG welder for fabrication shops focused on quality and efficiency.
Why You Should Buy it
- Delivers higher weld quality with pulsed MIG technology
- Reduces post-weld cleanup and material distortion
- Increases productivity with programmable weld settings
- Easy-to-learn interface supports welders of all skill levels
- Lightweight design improves portability compared to traditional transformer machines
- Excellent choice for manufacturing, aluminum fabrication, and MRO operations
- Backed by a 3-year manufacturer warranty for long-term reliability
If you need a professional MIG welder with advanced pulse capability, this model offers a strong balance of performance, control, and portability.
Reviews (0)
Specifications
| Specification | Details |
|---|---|
| Input Voltage | 208 / 220 / 230 / 240 V |
| Welding Processes | MIG (GMAW), Pulsed MIG, Flux Cored (FCAW) |
| Amperage Range | 20 A – 350 A |
| Rated Output | 230 A at 25.5 V (60% duty cycle) |
| Material Thickness Capacity | Mild Steel: 24 ga – 1/2 in |
| Weldable Metals | Aluminum, Stainless Steel, Steel |
| Wire Feed Speed | 50 – 800 IPM (1.3 – 20 m/min) |
| Wire Diameter Supported | 0.023 – 0.045 in |
| Spool Size | 12 in |
| Current Type | DC |
| Weld Output Type | CV |
| Input Phase | Single Phase |
| Frequency | 50 / 60 Hz |
| Input Amperage | 31.4 A |
| Dimensions (W x H x L) | 13.75 in x 19.25 in x 26.25 in |
| Net Weight | 84 lbs |
| Portability | Integrated handle, optional running gear |
| Warranty | 3 Years |

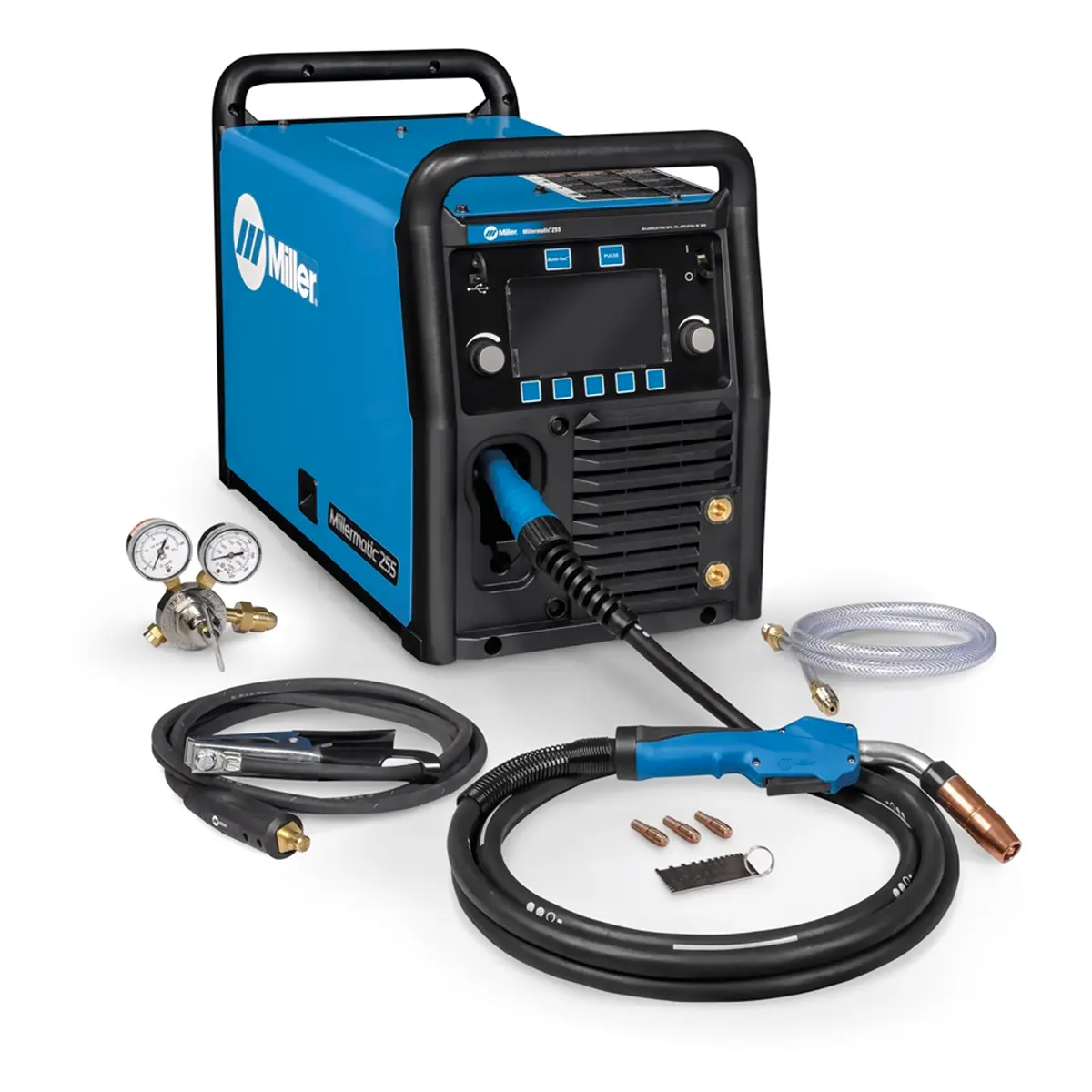

What’s Included
- Power source with power cord
- 15 ft 250-amp MIG gun
- Work cable with clamp
- Gas regulator and hose
- Extra contact tips
- Material thickness gauge
- Reversible drive rolls
