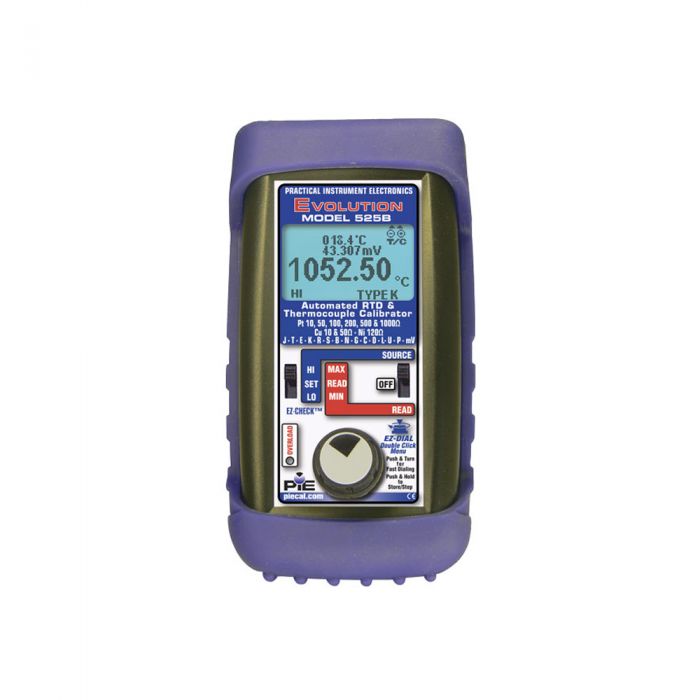

PIE 525B Temperature Calibrator

Overview PIE 525B Temperature Calibrator

PIE 525B Temperature Calibrator is a temperature calibrator for calibration and test workflows. Available product data highlights easy-to-Read Display.

Features and Performance

• Calibrate T/C instruments to 0.1 & 0.01 °F & °C Types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) & P (Platinel): -13.000 to 80.000 mV
• Calibrate RTD instruments to 0.1 & 0.01 °F & °C Pt 10, 50, 100, 200, 500 & 1000 Ohm (3850) Pt 100 Ohm (alpha=3902, 3916, 3926) Cu 10 & 50 Ohm and Ni 120 Ohm
• Calibrate with Confidence Resolution to 0.01 °F & °C; Accurate to 0.2°C Cold Junction Sensor Accurate to 0.05°C
• Perform Heat Treating Surveys & Accuracy Tests Meets or exceeds the requirement of AMS 2750 as both a Secondary Standard Instrument and as a Field Test Instrument
• Troubleshoot RTD Sensors & Instruments Automatic detection of 2, 3 or 4 wire connections indicates when individual wire connections are open Verify proper instrument operation by measuring the excitation current
• Faster Calibrations Instantly select three outputs with EZ-CHECK switch Easily find trip points with two speed EZ-DIAL knob & Automatic Stepping
• Easily Change T/C Types & Scale Double click to select T/C type & °F & °C
• Use in the Plant, Field or Shop Includes Rubber Boot and mV Test Leads Low profile switches resist accidental damage Brass screws for T/C wires plus mini T/C socket
• Easy-to-Read Display Turn on the backlight to read in dark areas of the plant
• Simple “No Tool” Battery Changes Four inexpensive “AA” batteries

Why Choose This Product

This model fits workflows where the documented temperature calibrator format matches the required calibration setup. The available specifications focus on easy-to-Read Display Turn on the backlight to read in dark areas of the plant.

Product Specifications
