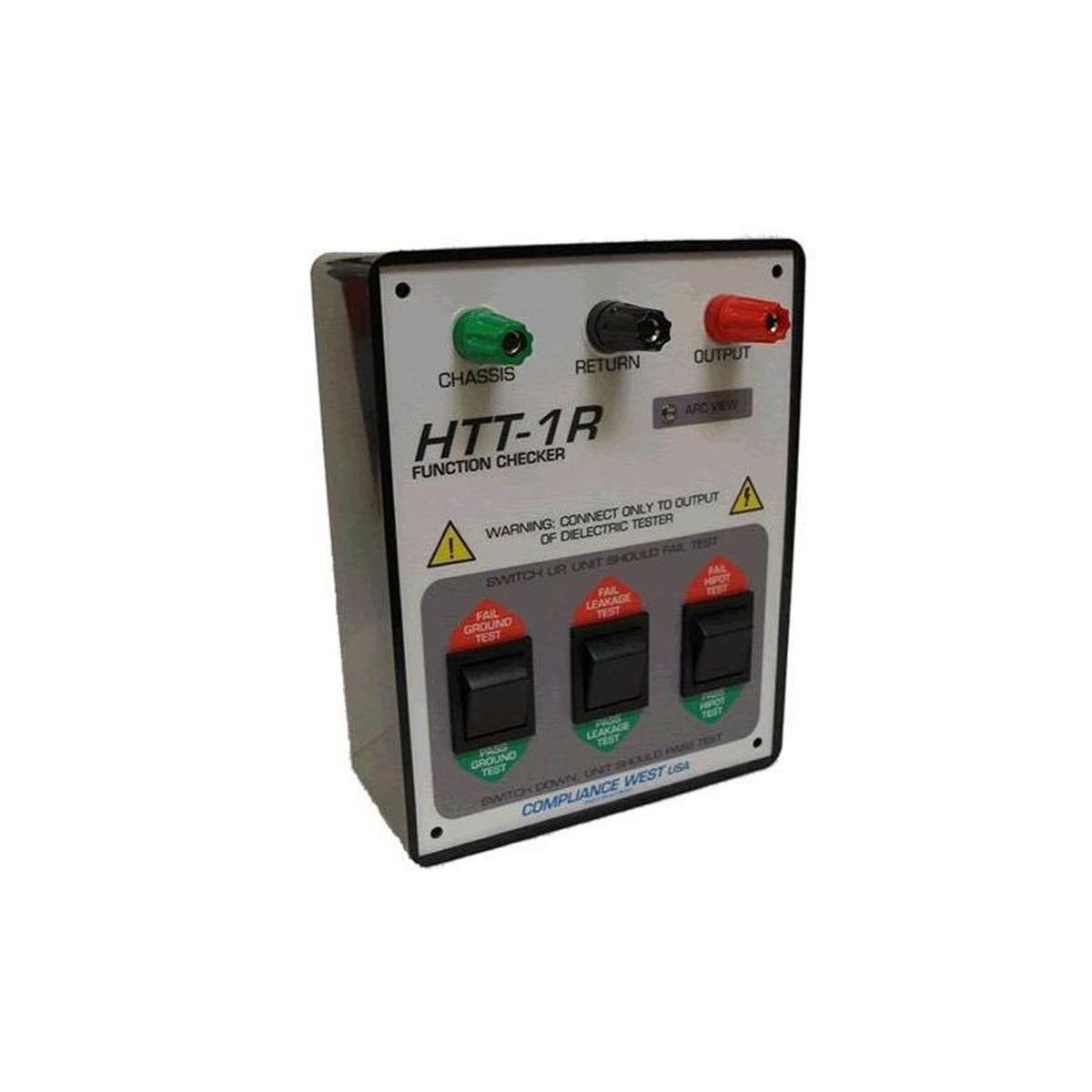

Compliance West HTT-1R-HIMA Function Tester

Overview Compliance West HTT-1R-HIMA Function Tester

Compliance West HTT-1R-HIMA Function Tester is a function tester for dielectric withstand and ground continuity test verification. Source details include The HTT-1R Hima simulates the following failures and Ground Continuity Chassis to Ground (0.01ohm), and/or.

Features and Performance

• The HTT-1R Hima simulates the following failures
• Ground Continuity Chassis to Ground (0.01ohm), and/or
• High Leakage Line to Ground (200kohm), and/or
• Dielectric Withstand Failure (Arc View window displays an arc at 750Vac ± 400V
• The HTT-1R can also be set to simulate passing tests
• Ground Continuity Chassis to Ground (0.025ohm), and/or
• Normal Leakage Line to Ground (424kohm), and /or
• Dielectric Withstand OK (up to 3000 volts
• Arc Testing is at 750 ± 400Vac. Results visible through Front Panel Window
• Works with any manufacturer’s Dielectric Withstand or Ground Continuity Tester. The HTT-1R simulates the failures and your tester should return results consistent with the switch settings on the front panel of the HTT-1R
• The HTT-1R is a passive device. No batteries or power is required
• Verifies proper operation of your equipment in less than a minute
• Portable
• Light weight
• Simple to operate
• Saves time
• For testing of Ground Bond Testers up to 30A
• 1 year warranty
