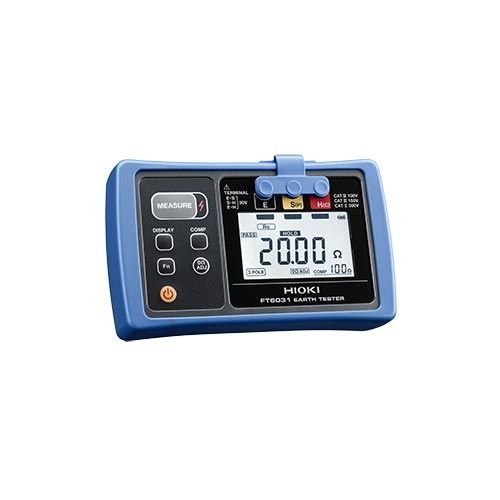

Hioki FT6031-03 Ground Resistance Tester

Overview Hioki FT6031-03 Ground Resistance Tester

Hioki FT6031-03 Ground Resistance Tester is a ground resistance tester for ground resistance testing and grounding system verification. Source details include CAT IV 100 V, CAT III 150 V, CAT II 300 V and IP67 protected – top of the industry.

Features and Performance

• CAT IV 100 V, CAT III 150 V, CAT II 300 V
• IP67 protected – top of the industry
• Test all ground types from Class A to Class D with a single meter
• Wide 0 to 2000Ω measurement range
• Minimize cabling time with innovative earthing rods and cable winder
• Measurement system: Switchable between two- and three- electrode methods
• Measurement range: 20 Ω (0 to 20.00 Ω) 200 Ω (0 to 200.0 Ω) 2000 Ω (0 to 2000 Ω
• 20 Ω (0 to 20.00 Ω
• 200 Ω (0 to 200.0 Ω
• 2000 Ω (0 to 2000 Ω
• Accuracy: ±1.5 %rdg. ±8 dgt. ±1.5 %rdg. ±4 dgt. ±1.5 %rdg. ±4 dgt
• 1.5 %rdg. ±8 dgt
• 1.5 %rdg. ±4 dgt
• Earth voltage: 0 to 30.0 Vrms, Accuracy: ±2.3 %rdg. ±8 dgt. (50/60 Hz), ±1.3 %rdg. ±4 dgt. (DC
• Dustproof and waterproof: IP65/IP67 (EN60529
• Power supply: LR6 Alkaline battery ×4
• Dimensions and mass: 185 mm (7.28 in)W × 111 mm (4.37 in)H × 44 mm (1.73 in)D, 570 g (20.1 oz) (including protector and batteries
• Auxiliary earthing rod L9840 (2 piece set) ×1
• Measurement cable (black 4 m) L9841 ×1
• Measurement cable (yellow 10 m, equipped with winder) L9842-11 ×1
• Measurement cable (red 20 m, equipped with winder) L9842-22 ×1
• Carrying case C0106 ×1
• Protector ×1
• LR6 Alkaline battery ×4
• Instruction manual ×1

Why Choose This Product

This type is relevant for ground resistance testing and grounding system verification. The source data also notes CAT IV 100 V, CAT III 150 V, CAT II 300 V and IP67 protected – top of the industry.
