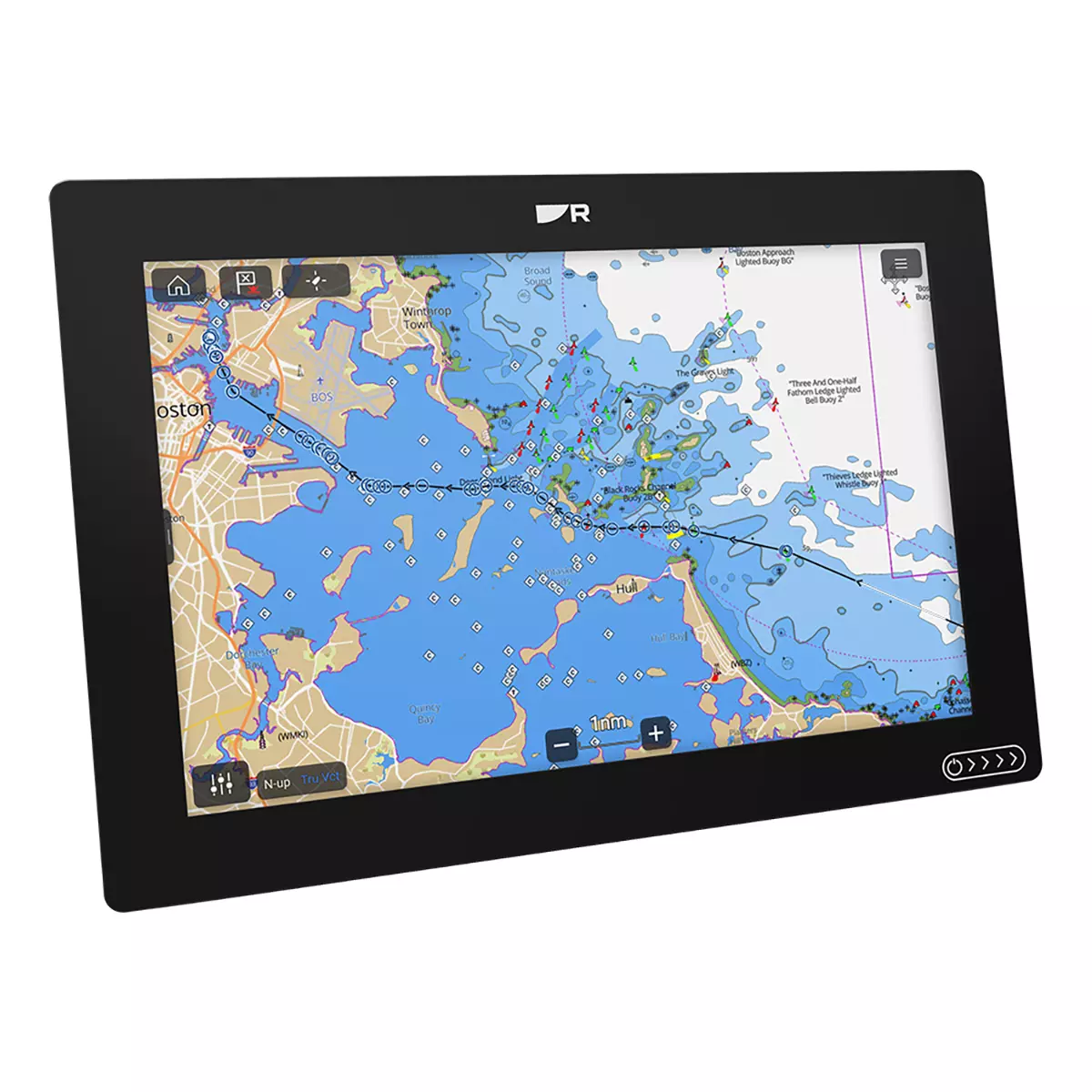

Raymarine Axiom 2 12 Multifunction Display
$2,014.00
Raymarine Axiom 2 12 Multifunction Display is a 12.1-inch helm display with a 6-core processor, HydroTough IPS touchscreen, and preloaded LightHouse North America charts. It is designed for larger helm stations that need more screen area and RayNet-ready system expansion.
Description
Overview Raymarine Axiom 2 12 Multifunction Display
Raymarine Axiom 2 12 Multifunction Display is a 12.1-inch helm display intended for larger navigation stations that need more viewing area and a modern touchscreen interface. The HydroTough IPS screen uses a 1280 x 800 WXGA panel with 1,800 nits of brightness, and the source data specifies a 6-core marine processor to keep charting and app use responsive.
This model includes LightHouse North America chart coverage and runs LightHouse OS. RayNet Gigabit Ethernet, Wi-Fi, Bluetooth 4.0, 64 GB of internal SSD storage, and a 10 Hz GPS / GLONASS / BeiDou receiver make it suitable for boats that want a larger networked display with room for chart, radar, and other system views.
Key Features
- 12.1-inch HydroTough IPS display: Provides a larger charting area with WXGA resolution and strong sunlight readability.
- 6-core marine processor: Supports faster chart redraws, startup, and smoother use of connected functions.

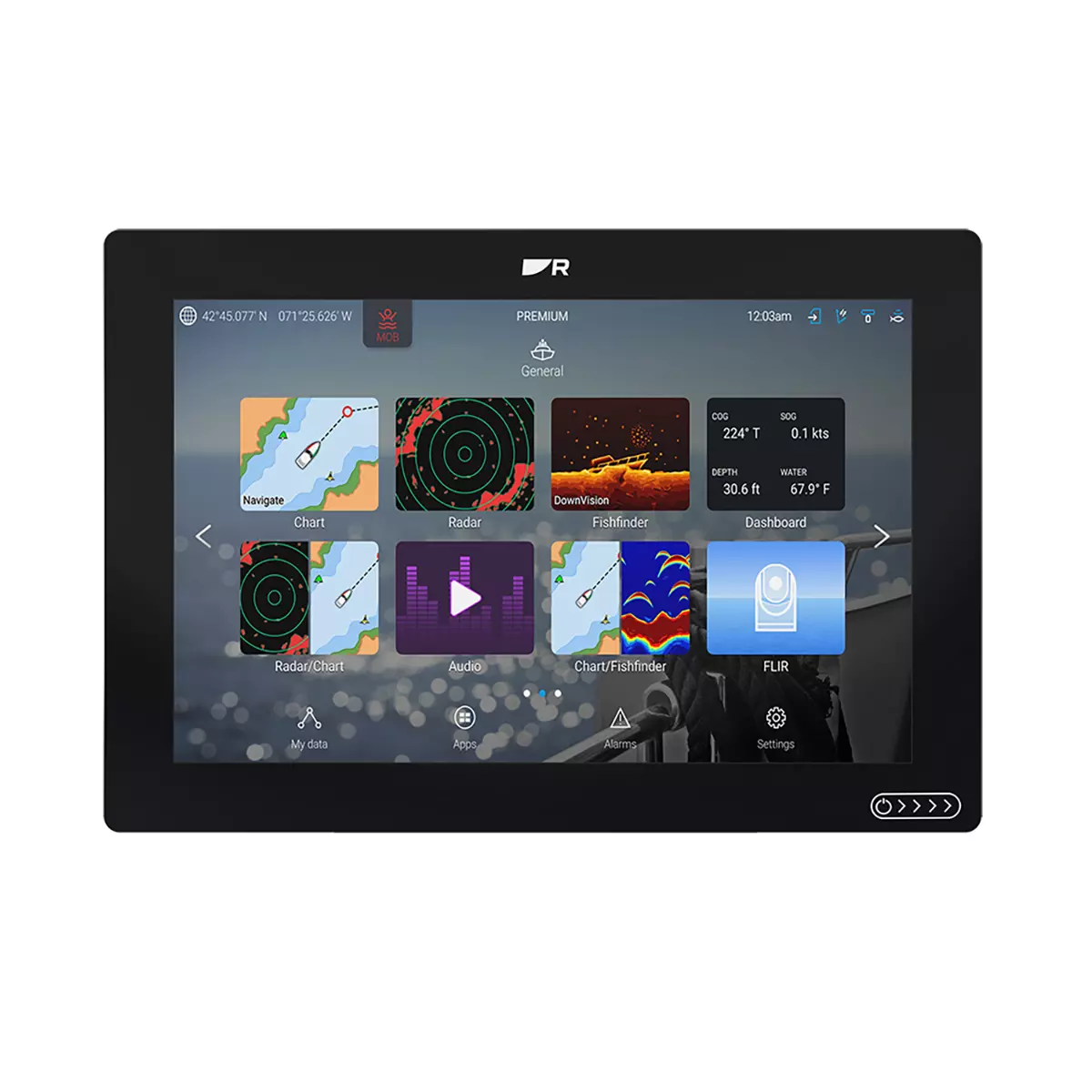

- Preloaded LightHouse North America charts: Adds chart coverage for quicker installation and initial setup.
- 64 GB SSD storage: Provides onboard space for chart data, user information, and system content.
- RayNet-ready connectivity: RayNet, Wi-Fi, Bluetooth 4.0, and a 10 Hz GNSS receiver support broader helm expansion.
Applications
A good fit for cruising boats, pilothouses, and larger center consoles that need a primary display with more usable screen space.
Useful where one display needs to manage navigation, networked accessories, and LightHouse OS functions from a larger helm interface.
Specifications
| Display size | 12.1-inch diagonal IPS screen |
| Resolution | WXGA 1280 x 800 pixels |
| Brightness | 1,800 nits (sunlight readable) |
| Processor | High-performance 6-core marine CPU |
| Internal storage | 64 GB solid state (SSD) |
| Networking | RayNet Gigabit Ethernet, Wi-Fi, Bluetooth 4.0 |
| GPS receiver | 10 Hz GPS / GLONASS / BeiDou |
| Operating system | LightHouse OS (v4 or later) |
| Waterproof rating | IPX6 and IPX7 |
| Warranty | 3-year manufacturer warranty (upon registration) |
What’s Included
- Raymarine Axiom 2 12 Multifunction Display
- LightHouse North America Chart (Preloaded/microSD)
- Trunnion Mount Kit with Knobs
- Flush Mount Gasket and Mounting Hardware
- Power/NMEA 2000 Cable (1.5 meters)
- Protective Suncover and Documentation Pack
Reviews (0)
FAQ
Frequently Asked Questions About Raymarine Axiom 2 12 Multifunction Display
What is the Raymarine Axiom 2 12 Multifunction Display designed for?
The Raymarine Axiom 2 12 Multifunction Display is designed for cruising boats, pilothouses, and larger center consoles that need a primary display with more usable screen space. It also fits larger helm interfaces where one display needs to manage navigation, networked accessories, and LightHouse OS functions.
What key features does this display include?
This display combines a 12.1-inch IPS screen with WXGA 1280 x 800 pixels, 1,800 nits (sunlight readable), and a High-performance 6-core marine CPU. It also includes preloaded LightHouse North America charts, 64 GB solid state (SSD), and LightHouse OS, giving operators onboard charting and app support through one interface.
Is this unit suitable for bright helm conditions?
Yes. The HydroTough IPS touchscreen is built for helm use and the source data lists 1,800 nits (sunlight readable). That combination helps keep chart and system information readable in bright conditions while supporting responsive touch operation underway.
What networking and integration support does it offer?
The unit supports RayNet Gigabit Ethernet, Wi-Fi, Bluetooth 4.0 and a 10 Hz GPS / GLONASS / BeiDou receiver for connected navigation and helm integration. This allows it to work with RayNet accessories, wireless connections, and onboard positioning data through one multifunction display.
