Garmin GPSMAP 9017 Multifunction Display
$4,354.00
Garmin GPSMAP 9017 Multifunction Display is a 17.25-inch 4K IPS helm display with Mini LED local dimming, a 7x faster processor, and Garmin BlueNet networking. It is built for larger glass helm installations that need more screen area and higher detail.
100 in stock
Description
Overview Garmin GPSMAP 9017 Multifunction Display
Garmin GPSMAP 9017 Multifunction Display is a large-format 17.25-inch helm display intended for operators who want a bigger 4K screen at the center of a glass helm. The IPS panel delivers 3840 x 2160 resolution and uses Mini LED local dimming to improve contrast and screen readability across bright ambient conditions.
The source data lists the processing platform as 7 times faster than previous generations, which helps maintain fast chart response and smoother handling of connected functions. Garmin BlueNet supports high-speed networking, and the unit also includes a 10 Hz multi-band GNSS receiver together with NMEA 2000, J1939, USB-C, Wi-Fi, ANT, and video connectivity.
Key Features
- 17.25-inch 4K IPS display: Offers a larger working area for charts, split-screen layouts, and video or radar presentation.
- Mini LED local dimming: Improves contrast for clearer viewing of charts and onboard data on a large screen.
- 7x faster processing platform: Helps the display remain responsive during route changes, chart redraws, and network use.
- Garmin BlueNet networking: Supports fast transfer of compatible data between multiple helm devices.
- Wide integration support: Built-in GNSS, NMEA 2000, J1939, USB-C, Wi-Fi, ANT, and video ports support broader system design.
Applications
Well suited to larger cruising, offshore, and multi-display helm installations where operators want a large primary screen.
A practical option for vessels that need one large display for navigation, cameras, radar, and other connected data sources.
Specifications
| Display size | 17.25 inches diagonal |
| Display resolution | 4K 3840 x 2160 pixels |
| Processor speed | 7x faster than previous generations |
| Display type | IPS with Mini LED (local dimming) |
| Networking | Garmin BlueNet (gigabit speeds) |
| Internal GPS | 10 Hz multi-band / multi-constellation |
| Connectivity | NMEA 2000, J1939, USB-C, Wi-Fi, ANT |

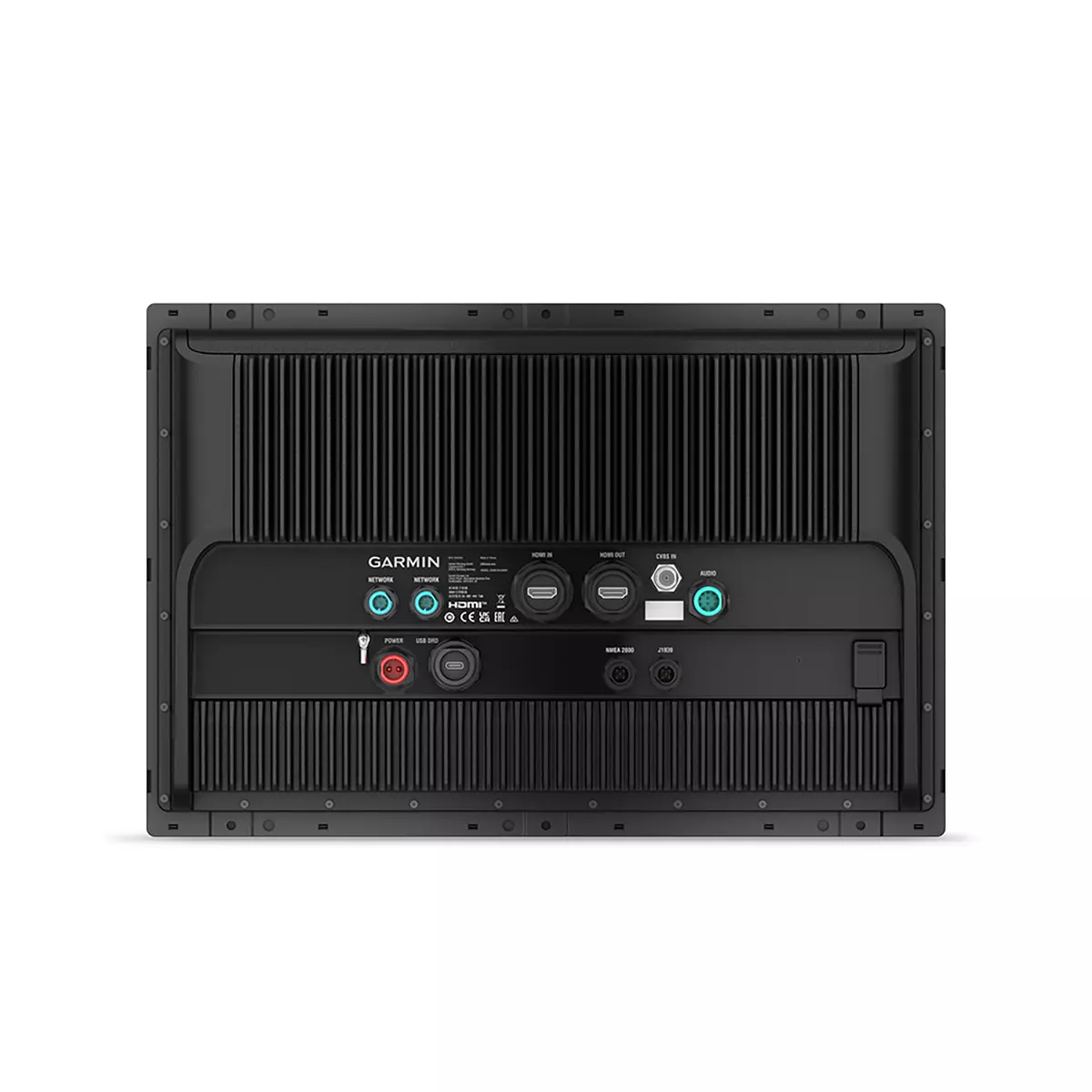

| Video ports | HDMI in (HDCP), HDMI out, BNC composite in |
| Waterproof rating | IPX7 |
| Weight | 13.0 lbs (5.9 kg) |
What’s Included
- Garmin GPSMAP 9017 Premium Chartplotter
- Power Cable and NMEA 2000® T-connector
- NMEA 2000 Backbone/Drop Cable (2 meters)
- Flush Mount Kit and Protective Cover
- Trim Piece Snap Covers
- Comprehensive Documentation Pack
Reviews (0)
FAQ
Frequently Asked Questions About Garmin GPSMAP 9017 Multifunction Display
What is the Garmin GPSMAP 9017 Multifunction Display designed for?
The Garmin GPSMAP 9017 Multifunction Display is designed for larger cruising, offshore, and multi-display helm installations where operators want a large primary screen. It also works well in vessels that need one large display for navigation, cameras, radar, and other connected data sources.
What key features does this display offer?
This display combines a 17.25-inch 4K 3840 x 2160 pixels screen with IPS with Mini LED (local dimming) technology and a platform described in the source data as 7x faster than previous generations. Together with Garmin BlueNet and a 10 Hz multi-band / multi-constellation receiver, it is built to keep charting and helm integration responsive.
Is this display suitable for clear helm viewing?
Yes. The screen uses 4K 3840 x 2160 pixels with IPS with Mini LED (local dimming), which helps present chart, radar, sonar, and split-screen data with higher detail. That larger, high-resolution format is useful on helms that need clearer separation between multiple onboard data views.
What networking and integration options are available?
The unit supports Garmin BlueNet (gigabit speeds), NMEA 2000, J1939, USB-C, Wi-Fi, ANT, and a 10 Hz multi-band / multi-constellation receiver for broader bridge integration. It also includes HDMI in (HDCP), HDMI out, BNC composite in, making it suitable for installations that need network data, connected sensors, and external video sources through one display.
