Raymarine Axiom 2 9 Multifunction Display
$1,039.00
Raymarine Axiom 2 9 Multifunction Display is a 9-inch helm display with a 6-core processor, HydroTough IPS touchscreen, and preloaded LightHouse North America charts. It combines 10 Hz GNSS, 64 GB SSD storage, and RayNet-ready connectivity in a mid-size format.
Description
Overview Raymarine Axiom 2 9 Multifunction Display

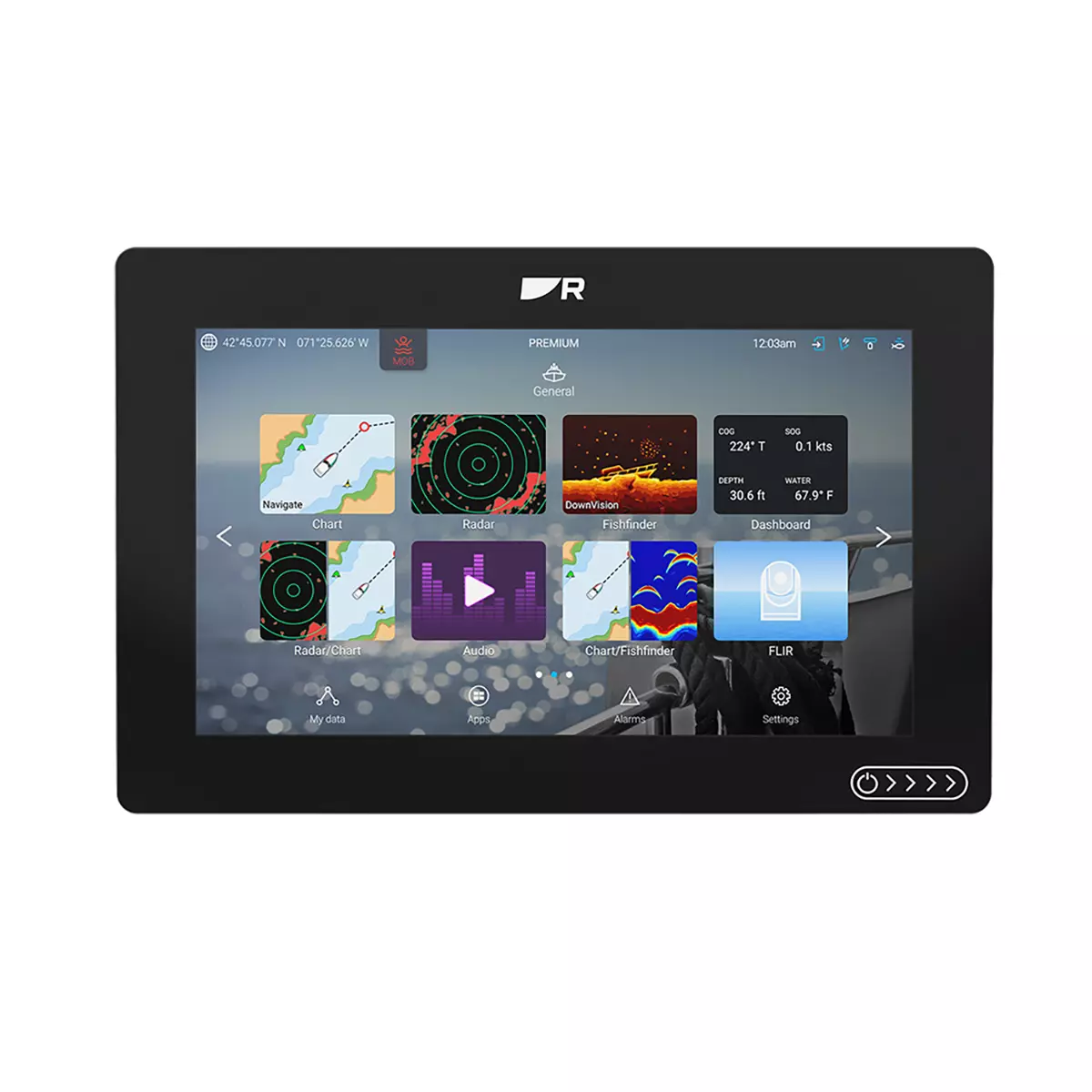

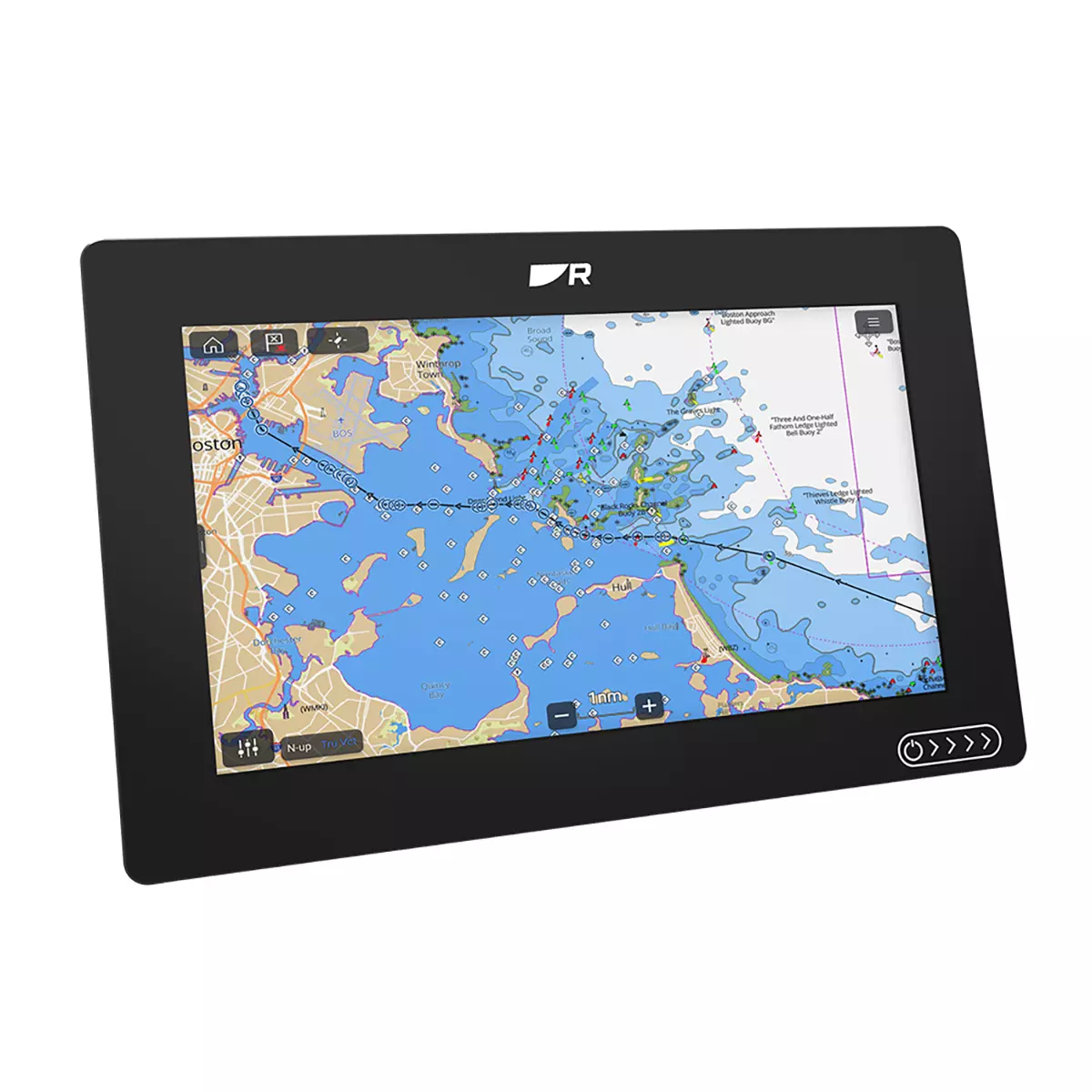

Raymarine Axiom 2 9 Multifunction Display is a 9-inch helm display built for operators who want more screen area than a compact unit while keeping installation size manageable. The HydroTough IPS display uses a 1280 x 720 panel with 1,500 nits of brightness, and the source data lists a 6-core marine processor for smooth chart handling and responsive operation.
This model includes LightHouse North America chart coverage and is designed to sit at the center of a connected Raymarine helm. It combines RayNet Gigabit Ethernet, Wi-Fi, Bluetooth 4.0, 64 GB of internal SSD storage, and a 10 Hz GPS / GLONASS / BeiDou receiver for navigation and broader system integration.
Key Features
- 9-inch HydroTough IPS display: Balances compact installation with enough room for chart detail and split-screen viewing.
- 6-core marine processor: Helps keep the interface responsive during chart movement and connected system use.
- 64 GB internal SSD storage: Provides onboard capacity for chart content, recordings, and user data.
- Preloaded LightHouse North America charts: Adds chart coverage for quicker deployment after installation.
- RayNet and 10 Hz GNSS support: Combines network expansion with frequent position updates for smoother navigation data.
Applications
A good match for mid-size center consoles, cruising boats, and mixed fishing or navigation setups that want a 9-inch primary display.
Useful where operators need one touchscreen for charting, network accessories, and LightHouse OS control without moving to a larger 12-inch unit.
Specifications
| Display size | 9.0-inch diagonal IPS display |
| Resolution | HD 1280 x 720 pixels |
| Brightness | 1,500 nits (sunlight readable) |
| Processor | High-performance 6-core marine CPU |
| Internal storage | 64 GB solid state (SSD) |
| Networking | RayNet Gigabit Ethernet, Wi-Fi, Bluetooth 4.0 |
| GNSS receiver | 10 Hz GPS / GLONASS / BeiDou |
| Voltage range | 8 V to 16 V DC (12 V nominal) |
| Waterproof rating | IPX6 and IPX7 |
| Warranty | 3-year manufacturer warranty (upon registration) |
What’s Included
- Raymarine Axiom 2 9 Multifunction Display
- LightHouse North America Chart (Preloaded/microSD)
- Trunnion Mount Kit with Knobs
- Flush Mount Gasket and Mounting Hardware
- Power/NMEA 2000 Cable (1.5 meters)
- Protective Suncover and Documentation Pack
Reviews (0)
FAQ
Frequently Asked Questions About Raymarine Axiom 2 9 Multifunction Display
What is the Raymarine Axiom 2 9 Multifunction Display designed for?
The Raymarine Axiom 2 9 Multifunction Display is designed for mid-size center consoles, cruising boats, and mixed fishing or navigation setups that want a 9-inch primary display. It also suits helms that need one touchscreen for charting, network accessories, and LightHouse OS control without moving to a larger display.
What key features does this display include?
This display combines a 9.0-inch IPS screen with HD 1280 x 720 pixels, 1,500 nits (sunlight readable), and a High-performance 6-core marine CPU. It also includes preloaded LightHouse North America charts, 64 GB solid state (SSD), and LightHouse OS, giving operators onboard charting and app support through one interface.
Is this unit suitable for bright helm conditions?
Yes. The HydroTough IPS touchscreen is built for helm use and the source data lists 1,500 nits (sunlight readable). That combination helps keep chart and system information readable in bright conditions while supporting responsive touch operation underway.
What networking and integration support does it offer?
The unit supports RayNet Gigabit Ethernet, Wi-Fi, Bluetooth 4.0 and a 10 Hz GPS / GLONASS / BeiDou receiver for connected navigation and helm integration. This allows it to work with RayNet accessories, wireless connections, and onboard positioning data through one multifunction display.
