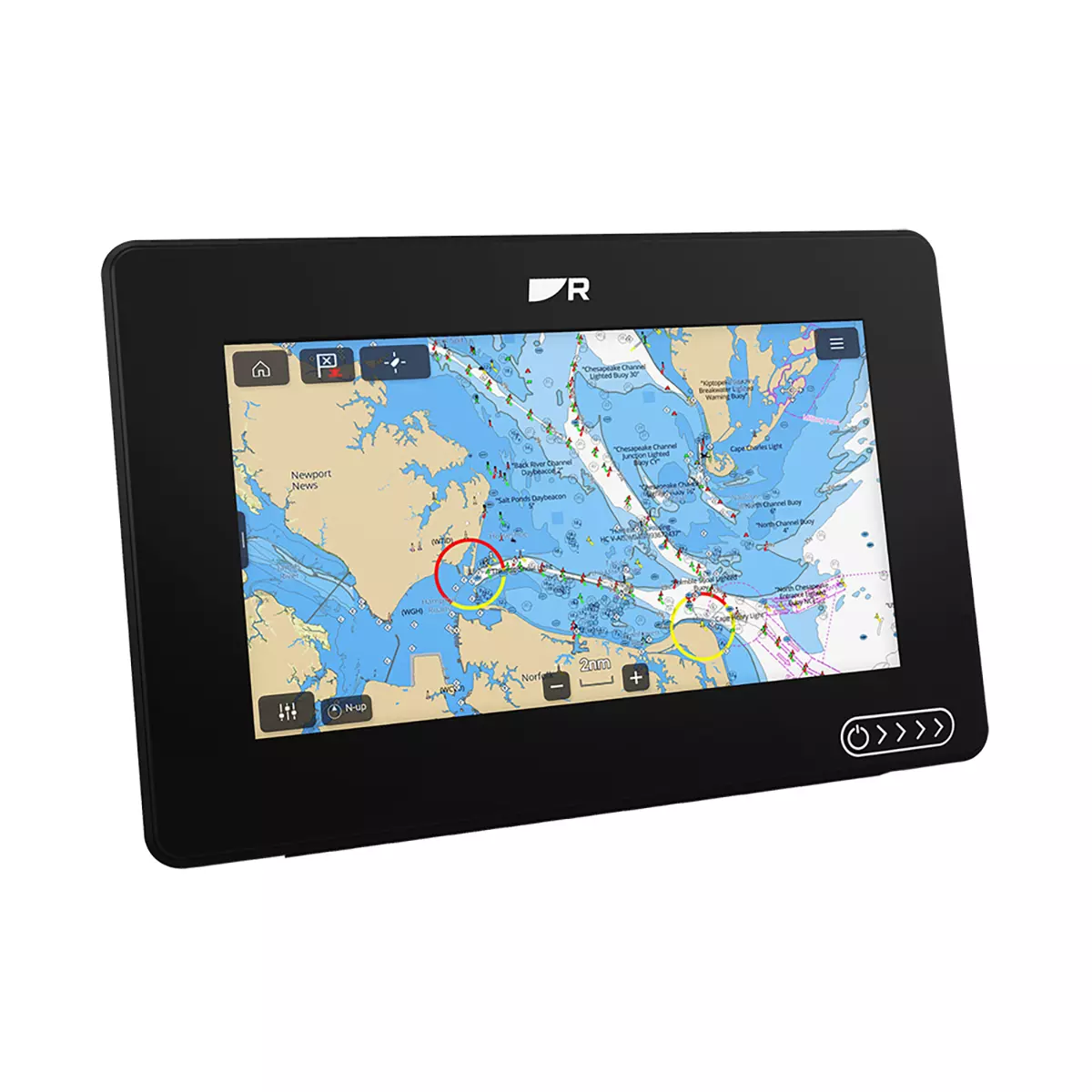

Raymarine Axiom 2 7 Multifunction Display
$844.00
Raymarine Axiom 2 7 Multifunction Display is a 7-inch helm display with a 6-core processor, HydroTough IPS touchscreen, and preloaded LightHouse North America charts. It is built for compact helms that still need fast networking, 10 Hz GNSS, and LightHouse OS.
Description
Overview Raymarine Axiom 2 7 Multifunction Display
Raymarine Axiom 2 7 Multifunction Display is a compact 7-inch helm display designed for boats that need a smaller screen without giving up modern processing speed and integration. The HydroTough IPS touchscreen uses a 1024 x 600 WSVGA panel with 1,500 nits of brightness, and the source data lists a 6-core marine processor for faster chart response and app handling.
This model includes LightHouse North America chart coverage and runs Raymarine LightHouse OS. With RayNet Gigabit Ethernet, Wi-Fi, Bluetooth 4.0, and a 10 Hz GPS / GLONASS / BeiDou receiver, it is intended to work as a networked navigation display on smaller consoles and compact helms.
Key Features
- 7-inch HydroTough IPS touchscreen: Provides a compact display that stays usable in bright conditions and resists water streaks, oil, and smudges.
- 6-core marine processor: Helps keep chart movement, startup, and app switching more responsive on a smaller helm display.
- Preloaded LightHouse North America charts: Adds ready-to-use chart content for faster setup after installation.
- RayNet, Wi-Fi, and Bluetooth connectivity: Supports network expansion with compatible radar, sonar modules, cameras, and other devices.
- 10 Hz GNSS receiver: Uses GPS, GLONASS, and BeiDou updates for smoother tracking and consistent positioning data.
Applications
Well suited to center consoles, small cruisers, and other compact helm layouts where space is limited but networked navigation is still required.
A practical main display or secondary station screen for operators using LightHouse OS, RayNet accessories, and connected onboard systems.
Specifications
| Display size | 7.0-inch diagonal IPS screen |
| Resolution | WSVGA 1024 x 600 pixels |
| Brightness | 1,500 nits (sunlight readable) |
| Processor | High-performance 6-core marine CPU |
| Internal storage | 64 GB solid state (SSD) |
| Networking | RayNet Gigabit Ethernet, Wi-Fi, Bluetooth 4.0 |
| GPS receiver | 10 Hz GPS / GLONASS / BeiDou |
| Operating system | LightHouse OS (v4 or later) |
| Waterproof rating | IPX6 and IPX7 |
| Warranty | 3-year manufacturer warranty (upon registration) |
What’s Included
- Raymarine Axiom 2 7 Multifunction Display
- LightHouse North America Chart (Preloaded/microSD)
- Trunnion Mount Kit with Knobs
- Flush Mount Gasket and Mounting Hardware
- Power/NMEA 2000 Cable (1.5 meters)
- Protective Suncover and Documentation Pack
Reviews (0)
FAQ
Frequently Asked Questions About Raymarine Axiom 2 7 Multifunction Display
What is the Raymarine Axiom 2 7 Multifunction Display designed for?
The Raymarine Axiom 2 7 Multifunction Display is designed for center consoles, small cruisers, and other compact helm layouts where space is limited but networked navigation is still required. It also works well as a main display or secondary station screen in compact helms using LightHouse OS, RayNet accessories, and connected onboard systems.
What key features does this display include?
This display combines a 7.0-inch IPS screen with WSVGA 1024 x 600 pixels, 1,500 nits (sunlight readable), and a High-performance 6-core marine CPU. It also includes preloaded LightHouse North America charts, 64 GB solid state (SSD), and LightHouse OS, giving operators onboard charting and app support through one interface.
Is this unit suitable for bright helm conditions?
Yes. The HydroTough IPS touchscreen is built for helm use and the source data lists 1,500 nits (sunlight readable). That combination helps keep chart and system information readable in bright conditions while supporting responsive touch operation underway.
What networking and integration support does it offer?
The unit supports RayNet Gigabit Ethernet, Wi-Fi, Bluetooth 4.0 and a 10 Hz GPS / GLONASS / BeiDou receiver for connected navigation and helm integration. This allows it to work with RayNet accessories, wireless connections, and onboard positioning data through one multifunction display.
