Garmin GPSMAP 9013 Multifunction Display
$2,924.00
Garmin GPSMAP 9013 Multifunction Display is a 13.2-inch 4K IPS helm display with Mini LED local dimming, a 7x faster processor, and Garmin BlueNet networking. It is designed for larger glass helm installations that need higher detail and fast data sharing.
100 in stock
Description
Overview Garmin GPSMAP 9013 Multifunction Display
Garmin GPSMAP 9013 Multifunction Display is a 13.2-inch helm display intended for larger navigation stations that benefit from extra screen detail. The display uses a 4K 3840 x 2160 IPS panel with Mini LED local dimming, giving more room for chart data, sonar or radar views, and split-screen layouts.
The source data describes the internal processing platform as 7 times faster than previous generations, helping keep the interface responsive during route changes and chart handling. Garmin BlueNet supports high-speed networking, and the built-in 10 Hz multi-band GNSS receiver is paired with NMEA 2000, J1939, USB-C, Wi-Fi, ANT, and video connectivity.
Key Features
- 13.2-inch 4K IPS display: Provides 3840 x 2160 resolution for detailed chart presentation and easier multi-window viewing.
- Mini LED local dimming: Improves contrast and helps maintain visibility across changing lighting conditions.
- 7x faster processing platform: Supports quicker redraws and more responsive helm operation when multiple functions are active.
- Garmin BlueNet networking: Moves compatible data quickly between displays, radar, cameras, and other connected devices.
- Expanded integration options: Built-in GNSS, NMEA 2000, J1939, USB-C, Wi-Fi, ANT, and video ports support wider helm integration.
Applications
Well suited to larger cruising, offshore, and sportfishing helms where operators want more screen area and high detail.
A strong option for glass bridge layouts that need to combine navigation, video, and other networked data on a larger single display.
Specifications
| Display size | 13.2 inches diagonal |
| Display resolution | 4K 3840 x 2160 pixels |
| Processor speed | 7x faster than previous generations |
| Display type | IPS with Mini LED (local dimming) |
| Networking | Garmin BlueNet (gigabit speeds) |
| Internal GPS | 10 Hz multi-band / multi-constellation |
| Connectivity | NMEA 2000, J1939, USB-C, Wi-Fi, ANT |

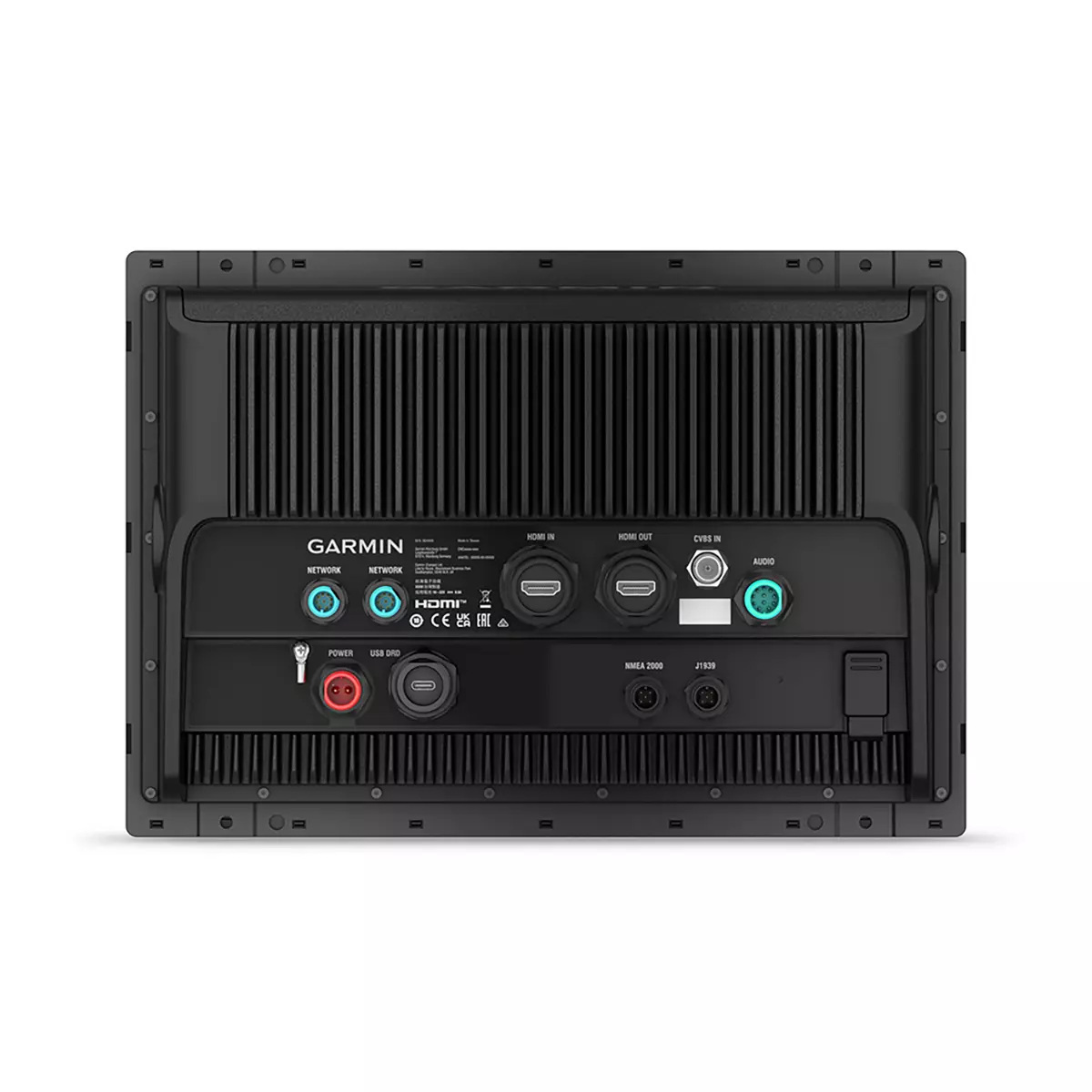

| Video ports | HDMI in (HDCP), HDMI out, BNC composite in |
| Waterproof rating | IPX7 |
| Weight | 9.1 lbs (4.13 kg) |
What’s Included
- Garmin GPSMAP 9013 Premium Chartplotter
- Power Cable and NMEA 2000® T-connector
- NMEA 2000 Backbone/Drop Cable (2 meters)
- Bail Mount Kit with Knobs and Flush Mount Kit
- Protective Suncover and Trim Piece Snap Covers
- Comprehensive Documentation Pack
Reviews (0)
FAQ
Frequently Asked Questions About Garmin GPSMAP 9013 Multifunction Display
What is the Garmin GPSMAP 9013 Multifunction Display designed for?
The Garmin GPSMAP 9013 Multifunction Display is designed for larger cruising, offshore, and sportfishing helms where operators want more screen area and high detail. It also works well in glass bridge layouts that need to combine navigation, video, and other networked data on a larger single display.
What key features does this display offer?
This display combines a 13.2-inch 4K 3840 x 2160 pixels screen with IPS with Mini LED (local dimming) technology and a platform described in the source data as 7x faster than previous generations. Together with Garmin BlueNet and a 10 Hz multi-band / multi-constellation receiver, it is built to keep charting and helm integration responsive.
Is this display suitable for clear helm viewing?
Yes. The screen uses 4K 3840 x 2160 pixels with IPS with Mini LED (local dimming), which helps present chart, radar, sonar, and split-screen data with higher detail. That larger, high-resolution format is useful on helms that need clearer separation between multiple onboard data views.
What networking and integration options are available?
The unit supports Garmin BlueNet (gigabit speeds), NMEA 2000, J1939, USB-C, Wi-Fi, ANT, and a 10 Hz multi-band / multi-constellation receiver for broader bridge integration. It also includes HDMI in (HDCP), HDMI out, BNC composite in, making it suitable for installations that need network data, connected sensors, and external video sources through one display.
